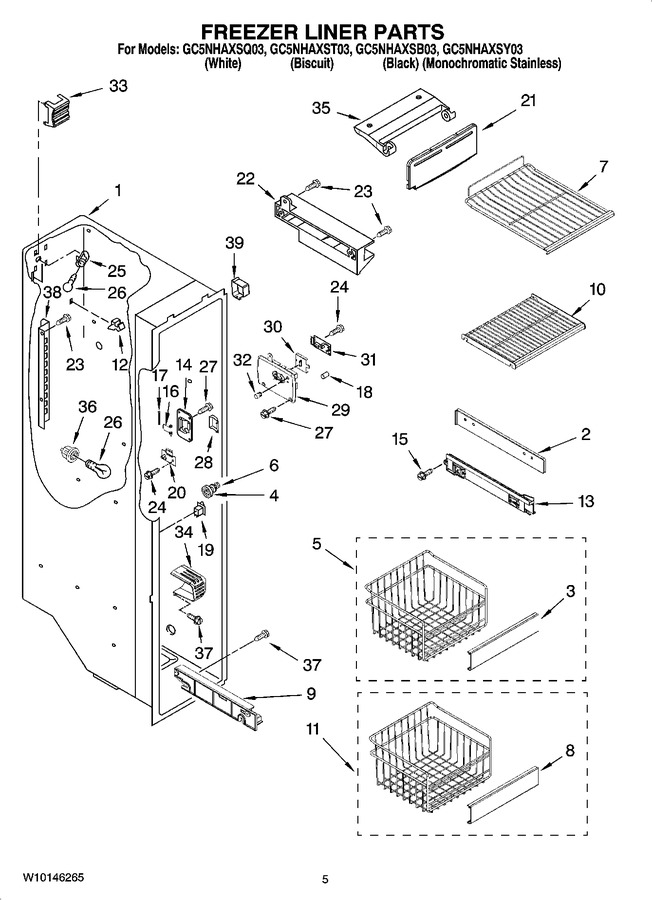

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2223777		Spacer, Slide (2)		Appelez-nous	-
3	2224053		Front, Basket				$ 64.68
4	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
5	W10130088		Basket, Deep (2) (includes 3)		Appelez-nous	-
6	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
7	2223500		Shelf Assembly, Cantilever (2)		Appelez-nous	-
8	2223782		Front, Basket		Appelez-nous	-
9	2223788		Shelf Track (left Side)				$ 40.68
9	2223787		Shelf Track (right Side)				$ 40.35
10	2254615		Shelf, Fixed		Appelez-nous	-
11	W10130090		Basket, Lower (includes 8)		Appelez-nous	-
12	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
13	2301545		Glide Assembly, Basket (2) (left Side)				$ 145.88
13	2301544		Glide Assembly, Basket (2) (right Side)		Appelez-nous	-
14	2259487		Cover, Emitter				$ 68.37
15	8534064		Screw		Appelez-nous	-
16	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
17	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
18	2198665		Tube, P.c. Board				$ 21.52
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 401.07
21	WPW10185438		Cover, Ice Maker   (Replaces: 2223321)				$ 85.64
22	2306900		Slide, Ice Maker Mounting (left Side)		Appelez-nous	-
22	2212321		Slide, Ice Maker Mounting (right Side)				$ 67.14
23	WP489478		Screw   (Replaces: 489478)				$ 7.75
24	2006254		Screw   (Replaces: 489214)				$ 13.13
25	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
26	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
27	WPW10142283		Screw   (Replaces: 8281185)				$ 9.84
28	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
29	2255558		Cover, Receiver				$ 41.19
30	2315398		Slide, Ice Maker Shut Off   (Replaces: 2255562)				$ 10.90
31	W10757851		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 311.76
32	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
33	2198589		Light Shield		Appelez-nous	-
34	W11298978		Light Lens   (Replaces: 2212340)				$ 93.88
35	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
36	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
37	W10142289		Screw   (Replaces: 3400893)				$ 9.15
38	2223415		Ladder (right Side)		Appelez-nous	-
38	2223414		Ladder (left Side)		Appelez-nous	-
39	2303378		Shield, Wiring				$ 11.88
