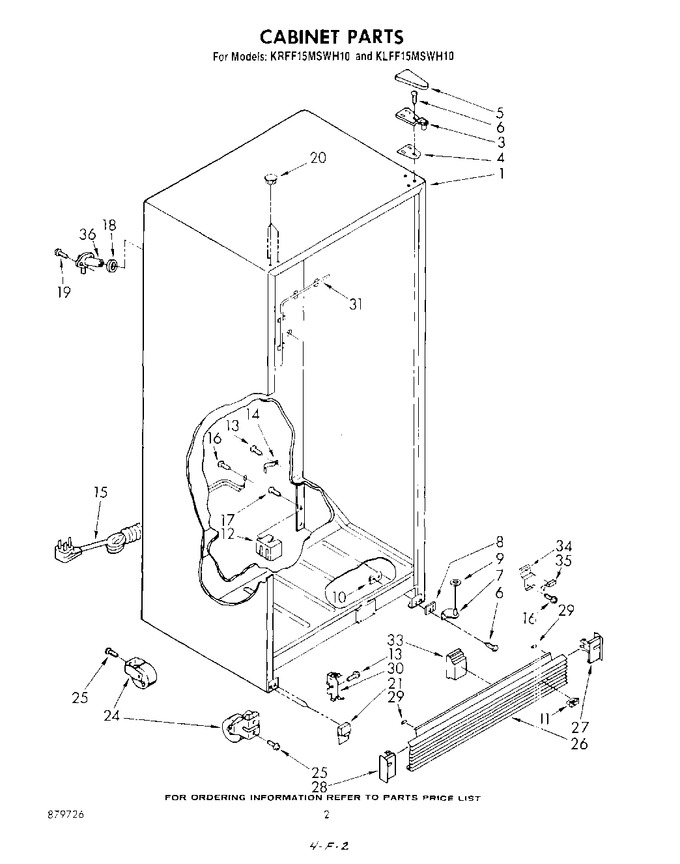

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 842039 | Hinge, Top |
|
- | |||||
| 4 | 836151 | Shim, Hinge |
|
- | |||||
| 5 | 842010 | Hinge Cover (white) |
|
- | |||||
| 5 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 6 | 488949 | Screw (repair) |
|
- | |||||
| 6 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 7 | 836686 | Hinge Bottom R.h. |
|
- | |||||
| 7 | 836687 | Hinge Bottom L.h. |
|
- | |||||
| 8 | WP487802 | Shim, Bottom Hinge (Replaces: 488723) |
|
Immediately | $ 7.91 | ||||
| 9 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 10 | 836162 | Tap Plate, Bottom |
|
- | |||||
| 11 | 1107553 | Reflector, Pilot, Light |
|
- | |||||
| 12 | 549947 | Box, Junction |
|
- | |||||
| 13 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 14 | 549193 | Clamp |
|
$ 14.06 | |||||
| 15 | 1107603 | Cord, Service |
|
- | |||||
| 16 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 18 | WP1106508 | Seal, Gasket (Replaces: 1103059) |
|
Immediately | $ 10.43 | ||||
| 19 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 8.57 | |||||
| 20 | 989195 | Hole Plug (3) (almond) |
|
- | |||||
| 20 | 842031 | Hole Plug (3) (white) |
|
- | |||||
| 21 | 839178 | Filler, Corner |
|
- | |||||
| 24 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 25 | 488454 | Screw, 1/4-28 X 1/2 (4) |
|
- | |||||
| 26 | 1107193 | Grille |
|
- | |||||
| 27 | 1107443 | Grille, End Cap (r.s) |
|
- | |||||
| 28 | 1107444 | Grille, End Cap (l.s.) |
|
- | |||||
| 29 | 1107614 | Bumper, Grille (2) |
|
- | |||||
| 30 | 989068 | Clip, Grille |
|
- | |||||
| 31 | 851778 | Stile Heater |
|
- | |||||
| 33 | 1107271 | Insert, Air Baffle |
|
- | |||||
| 34 | 1107551 | Mounting, Bracket Pilot Light |
|
- | |||||
| 35 | 1103639 | Light, Signal |
|
- | |||||
| 36 | WP2196157 | Fitting, Water (Replaces: 836489) |
|
Immediately | $ 12.59 |
