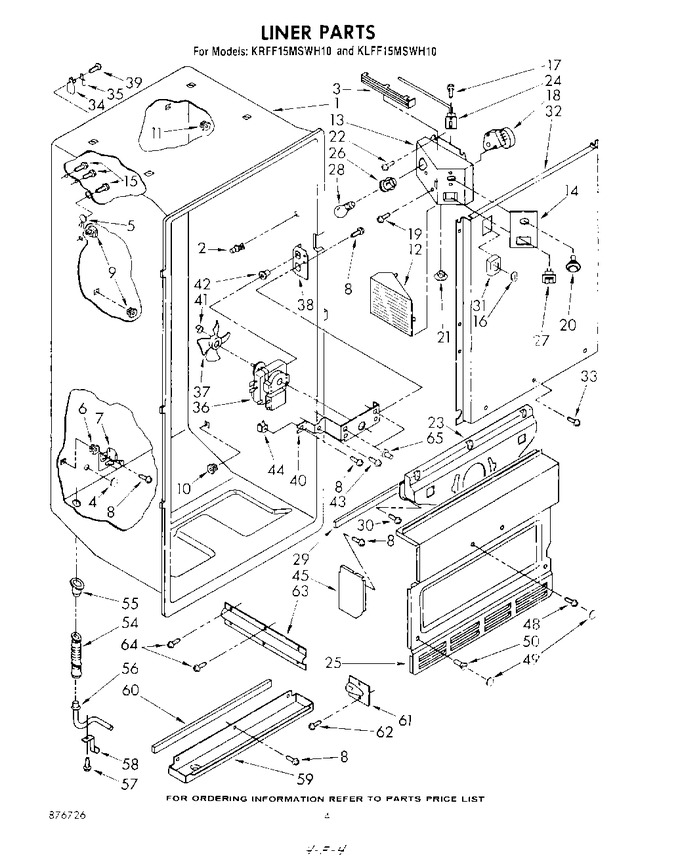

03 - Liner , Lit/optional


04 - Door


05 - Unit


06 - Breaker And Shelf


07 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Rivet-plastic				$ 12.42
3	1107558		Cover, Rivet		Appelez-nous	-
4	519890		Hole, Plug		Appelez-nous	-
5	481658		Receptacle Cap		Appelez-nous	-
6	538449		Screw Grommet		Appelez-nous	-
7	842436		Evaporator Support (2)		Appelez-nous	-
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
9	842339		Grommet		Appelez-nous	-
10	538449		Screw Grommet		Appelez-nous	-
11	848445		Grommet (6)		Appelez-nous	-
12	1100466		Light, Lens		Appelez-nous	-
13	1107555		Control Box		Appelez-nous	-
14	1107556		Insert, Control Box		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (3)   (Replaces: 488645)			Immediately	$ 8.40
16	835649		Grommet, Inlet Tube		Appelez-nous	-
17	488974		Screw		Appelez-nous	-
18	W10822278		Defrost Timer   (Replaces: 945486)			Immediately	$ 34.44
19	WP487353		Screw   (Replaces: 488693)				$ 7.95
20	1100467		Control Knob, Thermostat		Appelez-nous	-
21	940014		Hole Plug				$ 18.33
22	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
23	1107605		Fan Orifice		Appelez-nous	-
24	1107557		Thermostat & Barrier Assembly		Appelez-nous	-
25	1107560		Evaporator, Cover		Appelez-nous	-
26	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
27	938049		Switch, Toggle		Appelez-nous	-
28	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
29	659202		Gasket, Orifice		Appelez-nous	-
30	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
31	1107249		Cover, Water Fill Tube		Appelez-nous	-
32	1107606		Air Duct		Appelez-nous	-
33	488623		Screw, 10 X 1 1/4		Appelez-nous	-
33	488357		Screw, 8 X 1-1/4		Appelez-nous	-
34	538532		Screw Grommet		Appelez-nous	-
35	538533		Support Clip		Appelez-nous	-
36	SM999		Fan Motor   (Replaces: 1107711)			Immediately	$ 30.26
37	992920		Blade, Fan				$ 39.91
38	548263		Fan Braket Double		Appelez-nous	-
39	WP681414		Screw, (2) 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
40	548264		Fan, Bracket Single		Appelez-nous	-
41	992953		Ring, Compression		Appelez-nous	-
42	548268		Grommet, Fan Motor (3)		Appelez-nous	-
43	WP489128		Screw   (Replaces: 488500)				$ 11.40
44	537095		Expansion Clip		Appelez-nous	-
45	1107559		Air Baffle (2)		Appelez-nous	-
48	489175		Screw		Appelez-nous	-
49	1107633		Cap, Screw		Appelez-nous	-
50	WP488729		Screw, (2) 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 8.28
54	981147		Fitting, Drain		Appelez-nous	-
55	981148		Drain Ferrule		Appelez-nous	-
56	841646		Extension, Drain		Appelez-nous	-
57	489050		Screw, 8-32 X 1/2				$ 692.56
58	841648		Clip, Drain Extension		Appelez-nous	-
59	1107562		Drain Pan		Appelez-nous	-
60	1107954		Gasket, Drain Pan		Appelez-nous	-
61	839826		Cover, Tube Entry		Appelez-nous	-
62	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 488783)			Immediately	$ 8.28
63	981085		Cover, Tube		Appelez-nous	-
64	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 8.28
65	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
65	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
65	876370		Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
65	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
65	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
65	538449		Grommet		Appelez-nous	-
65	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
65	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
65	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
65	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
65	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
65	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
65	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
65	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
65	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
65	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
65	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
65	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
65	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	LIT879633		Parts List		Appelez-nous	-
	LIT1107944		Energy Label		Appelez-nous	-
	LIT1107608		Use & Care Guide		Appelez-nous	-
	LIT1107567		Service & Wiring Sheet		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
