SELECT A DIAGRAM

02 - Cabinet


03 - Liner , Lit/optional


04 - Door


05 - Unit


06 - Breaker And Shelf


07 - Ice Maker

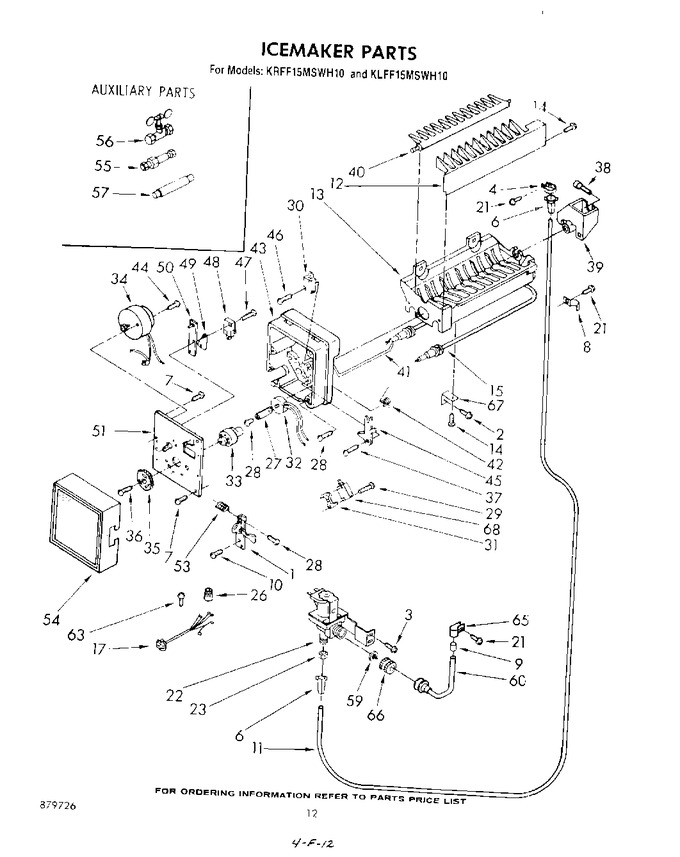

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	627248		Lever & Plate Assembly		Appelez-nous	-
2	487562		Screw, 10-12 X 3/8		Appelez-nous	-
3	WPW10141625		Screw, (2) 8-32 X 1/2   (Replaces: 488649)				$ 22.22
4	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
6	4387491		Insert, Tube (2)   (Replaces: 841707)				$ 8.23
7	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 488886)				$ 11.26
8	836472		Clamp, Tube		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
10	488622		Screw, 4-40 X 1/4		Appelez-nous	-
11	W10823511		Tube Water   (Replaces: 937669)			Immediately	$ 32.41
12	625840		Stripper, Ice		Appelez-nous	-
13	625856		Mold & Heater Assembly (includes Illus. 15)		Appelez-nous	-
14	00489128		Screw, 8-16 X 3/8   (Replaces: 489128)				$ 859.97
15	625843		Heater, Mold		Appelez-nous	-
17	627357		Harness, Wiring		Appelez-nous	-
21	WP965173		Screw 8 X 1/2   (Replaces: 487415)			Immediately	$ 11.87
22	4318047		Valve Solenoid   (Replaces: 627910)			Immediately	$ 74.09
23	WP627018		Nut   (Replaces: 627018)				$ 11.51
26	227991		Wire Connector		Appelez-nous	-
27	625829		Clamp, Thermostat		Appelez-nous	-
28	488372		Screw, 8-32 X 1		Appelez-nous	-
29	488361		Screw, 4-40 X 1 (2)		Appelez-nous	-
30	625851		Switch, S.p.d.t.		Appelez-nous	-
31	625834		Spacer, Holding Switch				$ 7.99
32	625844		Thermostat		Appelez-nous	-
33	625913		Cam		Appelez-nous	-
34	625846		Motor		Appelez-nous	-
35	625914		Gear		Appelez-nous	-
36	488957		Screw		Appelez-nous	-
37	627199		Screw, Shoulder		Appelez-nous	-
38	836491		Tube, Water Inlet		Appelez-nous	-
39	544304		Beraing & Inlet		Appelez-nous	-
40	00627375		Ejector   (Replaces: 627375)			Immediately	$ 203.33
41	627003		Arm, Shut-off		Appelez-nous	-
42	625832		Spring, Shut-off Arm		Appelez-nous	-
43	625827		Support		Appelez-nous	-
44	488361		Screw (used W/motor 625846)		Appelez-nous	-
45	625830		Lever, Arm		Appelez-nous	-
46	488360		Screw, 4-24 X 3/4 (2)		Appelez-nous	-
47	00488362		Screw, 4-40 X 3/4 (2)   (Replaces: 488362)				$ 144.58
48	625947		Switch, S.p.d.t.		Appelez-nous	-
49	627680		Insulator, Switch		Appelez-nous	-
50	627024		Plate, Valve Switch		Appelez-nous	-
51	627740		Plate, Mounting		Appelez-nous	-
53	627163		Spring		Appelez-nous	-
54	1107613		Cover		Appelez-nous	-
55	512503		Union		Appelez-nous	-
56	541157		Valve, Shut-off		Appelez-nous	-
57	978488		Filter Kit		Appelez-nous	-
59	WP16123		Washer   (Replaces: 488292)				$ 8.16
60	627854		Tube, Inlet Valve		Appelez-nous	-
63	488542		Screw, Ground		Appelez-nous	-
65	510716		Clamp Tube		Appelez-nous	-
66	537588		Nut, Valve		Appelez-nous	-
67	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
68	627848		Switch, S.p.d.t.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
