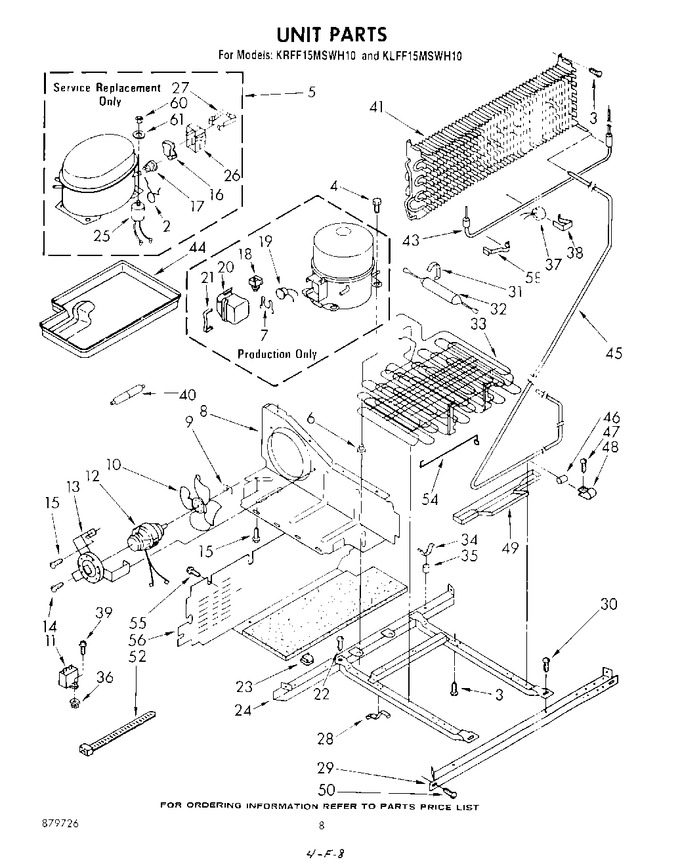

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1114190 | Spring, Overload |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 4 | 876811 | Screw, 1/4-28 X 1 (4) (Replaces: 489116) |
|
$ 7.79 | |||||
| 5 | 482980 | Compressor Includes Items 2, 16, 17, 25, 26, 27, 60, & 61) (also Order 876765 Tube Kit) |
|
- | |||||
| 6 | 876811 | Grommet (4) (Replaces: 1108038) |
|
$ 7.79 | |||||
| 7 | 943320 | Overload Spring |
|
- | |||||
| 8 | 850764 | Baffle |
|
- | |||||
| 9 | WP486692 | Nut, Speed (Replaces: 486692) |
|
$ 8.43 | |||||
| 10 | 989524 | Blade, Fan |
|
- | |||||
| 11 | WPW10662129 | Capacitor (Replaces: 1114291) |
|
Immediately | $ 58.86 | ||||
| 12 | 833697 | Motor (Replaces: 1107713) |
|
Immediately | $ 88.15 | ||||
| 13 | 548695 | Bracket, Fan Motor |
|
- | |||||
| 14 | 681390 | Screw, 8-32 X 3/8 (3) (Replaces: 489019) |
|
$ 13.71 | |||||
| 15 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 16 | WP2262181 | Relay (used W/service Compressor) (Replaces: 1108143) |
|
$ 128.78 | |||||
| 17 | 483036 | Overload (used W/service Compressor) |
|
- | |||||
| 18 | 945507 | Relay (used W/original Compressor) |
|
- | |||||
| 19 | 1107956 | Overload (used W/original Compressor) |
|
- | |||||
| 20 | 1105055 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 21 | 943322 | Spring (used W/original Compressor) |
|
- | |||||
| 22 | 303776 | Screw, Ground (Replaces: 488879) |
|
- | |||||
| 23 | 548745 | Clip, Wire (2) |
|
- | |||||
| 24 | 945461 | Frame |
|
- | |||||
| 25 | 483009 | Capacitor |
|
- | |||||
| 26 | 1108115 | Relay Case (used W/service Compressor) |
|
- | |||||
| 27 | 938384 | Strap, Cover (used W/service Compressor) |
|
- | |||||
| 28 | 548744 | Clip (2) |
|
- | |||||
| 29 | 548663 | Rail, Front |
|
- | |||||
| 30 | 489340 | Screw, 5/16-18 X 5/8 (Replaces: 488683) |
|
- | |||||
| 31 | 548508 | Clamp |
|
- | |||||
| 32 | W10843121 | Dryer (Replaces: 945424) |
|
Immediately | $ 57.13 | ||||
| 33 | 943480 | Condencer |
|
- | |||||
| 34 | 548738 | Clamp (4) |
|
- | |||||
| 35 | 943447 | Grommet |
|
- | |||||
| 36 | 509812 | Grommet |
|
- | |||||
| 37 | WP4387489 | Defrost, Bimetal (Replaces: 989624) |
|
$ 108.99 | |||||
| 38 | 513584 | Clamp |
|
- | |||||
| 39 | W11693756 | Screw, 8 X 5/8 (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 40 | 1107672 | Muffler |
|
- | |||||
| 41 | 1107503 | Evaporator |
|
- | |||||
| 43 | 989613 | Heater, Defrost |
|
- | |||||
| 44 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 45 | 1107507 | Exchanger, Heat |
|
- | |||||
| 46 | 510769 | Dampener (2) |
|
- | |||||
| 47 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 488197) |
|
$ 22.22 | |||||
| 48 | 510716 | Clamp, Tube (2) |
|
- | |||||
| 49 | 945572 | Pan, Drip |
|
- | |||||
| 50 | 488454 | Screw, 1/4-28 1/2 (2) |
|
- | |||||
| 52 | 851095 | Strap |
|
- | |||||
| 54 | 850156 | Guard, Fan |
|
- | |||||
| 55 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 56 | 850639 | Cover |
|
- | |||||
| 58 | 548459 | Clip, Heater |
|
- | |||||
| 60 | 489142 | Nut |
|
- | |||||
| 61 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 61 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 61 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 61 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 61 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 61 | 489143 | Washer |
|
- | |||||
| 61 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 61 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
