02 - Cabinet
03 - Liner , Lit/optional
04 - Door
05 - Unit
06 - Breaker And Shelf
07 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

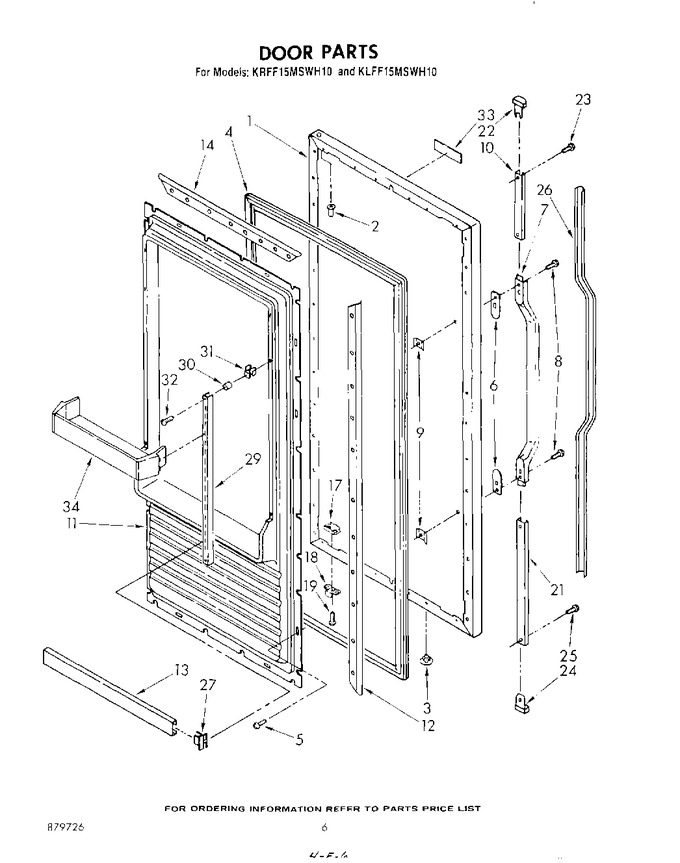

| 1 | 1107539 | Freezer Door Panel R.h. (white) |
|
- | |||||
| 1 | 1107740 | Freezer Door Panel R.h. (almond) |
|
- | |||||
| 1 | 1107737 | Freezer Door Panel R.h. (white) |
|
- | |||||
| 1 | 1107689 | Freezer Door Panel R.h. (almond Freezer Door Panel L.h.) |
|
- | |||||
| 2 | 509929 | Cap, Hinge Sleeve (2) |
|
- | |||||
| 3 | 534927 | Hole Plug (2) (white) |
|
- | |||||
| 3 | 989197 | Hole Plug (2) (almond) |
|
- | |||||
| 4 | 2188439A | Door, Gasket Magnetic (Replaces: 981092) |
|
- | |||||
| 5 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 5 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 6 | 1107651 | Center Shim |
|
- | |||||
| 7 | 1107215 | Door Handle, Center |
|
- | |||||
| 8 | WPW10141645 | Screw, 8 X 1/2 (4) (Replaces: 489084) |
|
$ 8.05 | |||||
| 9 | 941242 | Screw Anchor (2) |
|
- | |||||
| 10 | 1107241 | Retainer, Insert (top) |
|
- | |||||
| 11 | 1107120 | Panel, Interior Door |
|
- | |||||
| 12 | 836120 | Retainer, Gasket (side) (2) |
|
- | |||||
| 13 | 1107546 | Trim, Door Shelf |
|
- | |||||
| 14 | 836115 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 17 | 943185 | Tap Plate |
|
- | |||||
| 18 | 1107202 | Bracket, Door Stop |
|
- | |||||
| 19 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 19 | 488930 | Screw (repair) |
|
- | |||||
| 21 | 1107617 | Retainer, Insert (bottom) |
|
- | |||||
| 22 | 1107341 | End Cap, Handle (top) |
|
- | |||||
| 23 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 24 | 1107342 | End Cap, Handle Bottom |
|
- | |||||
| 25 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 26 | 1107234 | Insert, Handle |
|
- | |||||
| 26 | 1107930 | Insert, Handle (black) |
|
- | |||||
| 27 | 1107300 | Retainer, Door Trim |
|
- | |||||
| 29 | 1107547 | Ladder, Door (2) |
|
- | |||||
| 30 | 1107352 | Spacer, Shelf Ladder (4) |
|
- | |||||
| 31 | 537095 | Expansion Clip (4) |
|
- | |||||
| 32 | 489188 | Screw, 8-15 X 1 1/4 (4) |
|
- | |||||
| 33 | 1107915 | Nameplate |
|
- | |||||
| 34 | 1107548 | Door Shelf, Cantilever |
|
- |
