SELECT A DIAGRAM

02 - Cabinet


03 - Liner , Lit/optional


04 - Door


05 - Unit

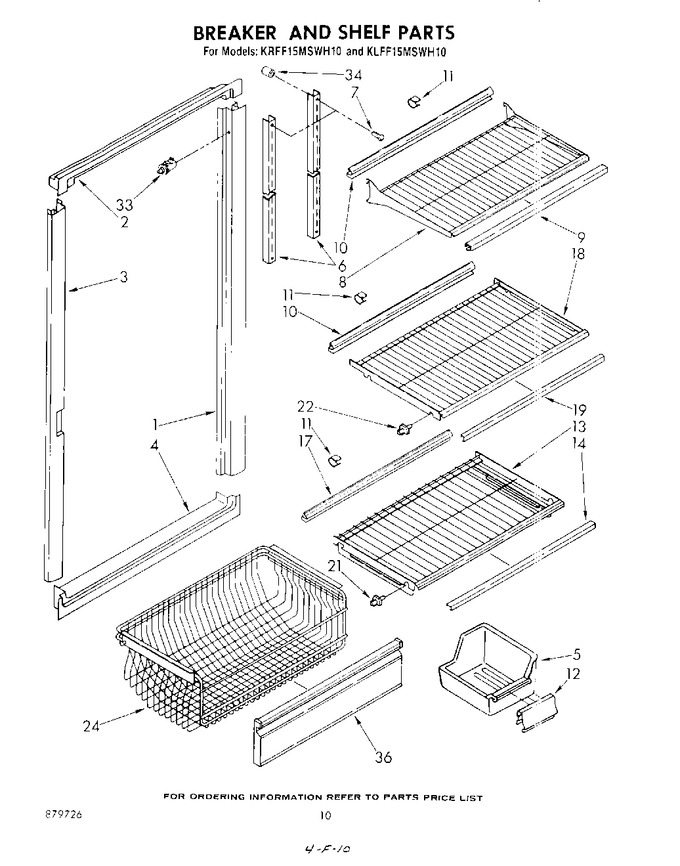

06 - Breaker And Shelf


07 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	843333		Breaker Trim (r.s) (without Switch Holes)		Appelez-nous	-
1	836627		Breaker Trim (r.s)		Appelez-nous	-
2	940923		Breaker Trim (top)		Appelez-nous	-
3	836631		Breaker Trim (l.s) (with Switch Hole)				$ 7.38
3	840054		Breaker Trim (l.s)		Appelez-nous	-
4	836176		Breaker Trim, Bottom		Appelez-nous	-
5	480649		Ice Cube Pan		Appelez-nous	-
6	1107955		Shelf Ladder (2)		Appelez-nous	-
7	488357		Screw, 8 X 1-1/4 (6)		Appelez-nous	-
8	1107527		Shelf, Cantilever		Appelez-nous	-
9	1107528		Trim, Shelf Front		Appelez-nous	-
10	1107529		Reflector		Appelez-nous	-
11	1107246		Clip, Reflector		Appelez-nous	-
12	532501		Trim, Ice Cube Pan		Appelez-nous	-
13	1107531		Shelf, Basket		Appelez-nous	-
14	1107583		Trim, Frame (2)		Appelez-nous	-
17	1107297		Reflector, Shelf		Appelez-nous	-
18	1107627		Shelf, Fixed		Appelez-nous	-
19	1107528		Trim, Shelf Front		Appelez-nous	-
21	528864		Shelf Stud (8)		Appelez-nous	-
22	849297		Stud, Fixed Shelf		Appelez-nous	-
24	1107533		Freezer, Basket		Appelez-nous	-
33	549191		Switch, Light		Appelez-nous	-
34	1107542		Spacer Ground		Appelez-nous	-
36	1107534		Basket, Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
