View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

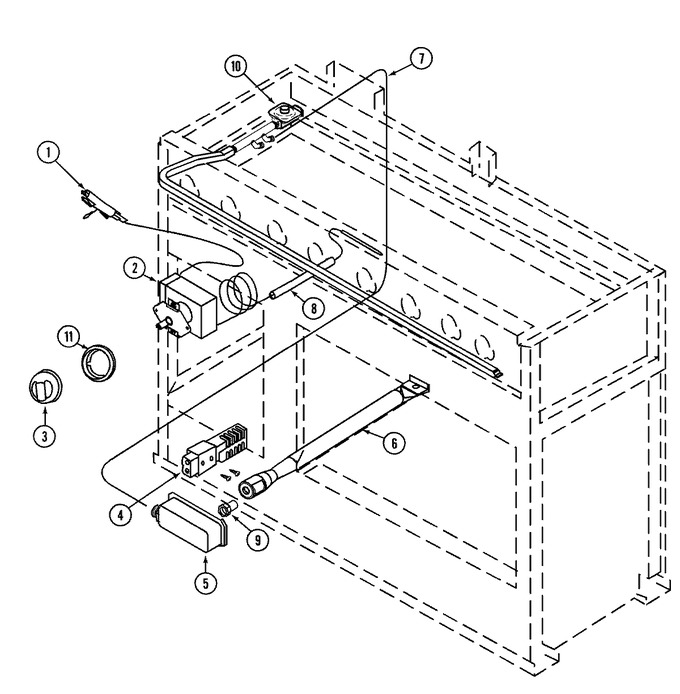

01 - 12`` Oven Controls
02 - 27`` Oven Controls
03 - Backguard Assembly
04 - Body/oven
05 - Door
06 - Griddle Assembly
07 - Top Assembly & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74011278 | Light Assy., Oven (Replaces: 73001071) | 10 |
|
$ 106.63 | ||||
| 2 | 73001077 | Harness, Wire 12 Oven | 10 |
|
- | ||||
| 2 | 73001163 | Thermostat, Small Oven | 10 |
|
- | ||||
| 3 | 73001164 | Knob, Thermostat (12`` Oven) | 10 |
|
- | ||||
| 4 | 73001165 | Igniter, 12`` Oven (rear) | 10 |
|
$ 243.00 | ||||
| 5 | 73001108 | Valve, Single Thermal | 10 |
|
- | ||||
| 6 | 73001036 | Burner, Oven 27`` Rg | 10 |
|
- | ||||
| 7 | 73001097 | Tubing, Manifold To 12`` Oven | 10 |
|
- | ||||
| 8 | 73001148 | Sleeve, Fiberglass | 10 |
|
- | ||||
| 9 | 73001046 | Orifice No.47 | 10 |
|
- | ||||
| 10 | 73001126 | Regulator, Pressure | 10 |
|
$ 129.64 | ||||
| 11 | 73001055 | Bezel, Plated | 10 |
|
- |
