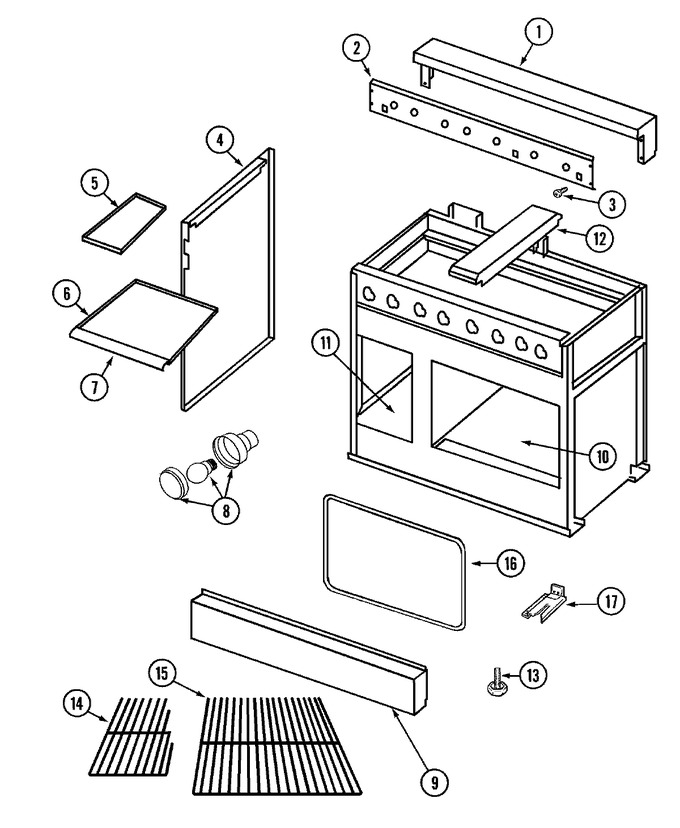

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001028		Ledge, Landing (48)	10	Appelez-nous	-
2	73001219		Shield, Heat (lwr)	10	Appelez-nous	-
2	73001120		Panel, Manifold	10	Appelez-nous	-
3	73001112		Screw, Door Panel	10	Appelez-nous	-
4	73001100		Panel, Side (lt)	10	Appelez-nous	-
4	73001099		Panel, Side (rt)	10	Appelez-nous	-
5	73001119		Liner, Drip Pan	10	Appelez-nous	-
6	73001118		Pan, Drip (lt)	10	Appelez-nous	-
6	73001098		Pan, Drip (rt)	10	Appelez-nous	-
7	73001025		Handle, Drip Pan (48)	10	Appelez-nous	-
8	WP74011278		Light Assy., Oven   (Replaces: 73001071)	10			$ 106.63
9	73001064		Catch (female)		Appelez-nous	-
9	73001021		Kickplate (48)	10	Appelez-nous	-
9	73001061		Strike (male)		Appelez-nous	-
10	73001107		Liner, Oven Bottom	10	Appelez-nous	-
11	73001117		Bottom, Oven Liner	10	Appelez-nous	-
12	73001116		Spacer, Center	10	Appelez-nous	-
13	73001083		Leg, Leveling	10	Appelez-nous	-
13	73001230		Receptacle, Leveling Leg	10	Appelez-nous	-
14	73001089		Rack, Oven (12``)	10	Appelez-nous	-
15	73001205		Clip, Rack Support (l-shape)	10	Appelez-nous	-
15	73001110		Rack, Oven (27``)	10	Appelez-nous	-
15	73001220		Screw	10	Appelez-nous	-
15	73001017		Support, Oven Rack	10	Appelez-nous	-
15	73001206		Clip, Rack Support (u-shape)	10	Appelez-nous	-
16	73001056		Gasket, Door (27``)	10	Appelez-nous	-
16	73001057		Gasket, Door (12``)	10	Appelez-nous	-
17	WP73001214		Bracket, Anti-tip   (Replaces: 73001214)	10			$ 146.84
17	7101E082		Screw, Cabinet Mntg	10	Appelez-nous	-
18	4396923		Tray Assy., Broiler Pan   (Replaces: 73001013)	10		Immediately	$ 54.64
