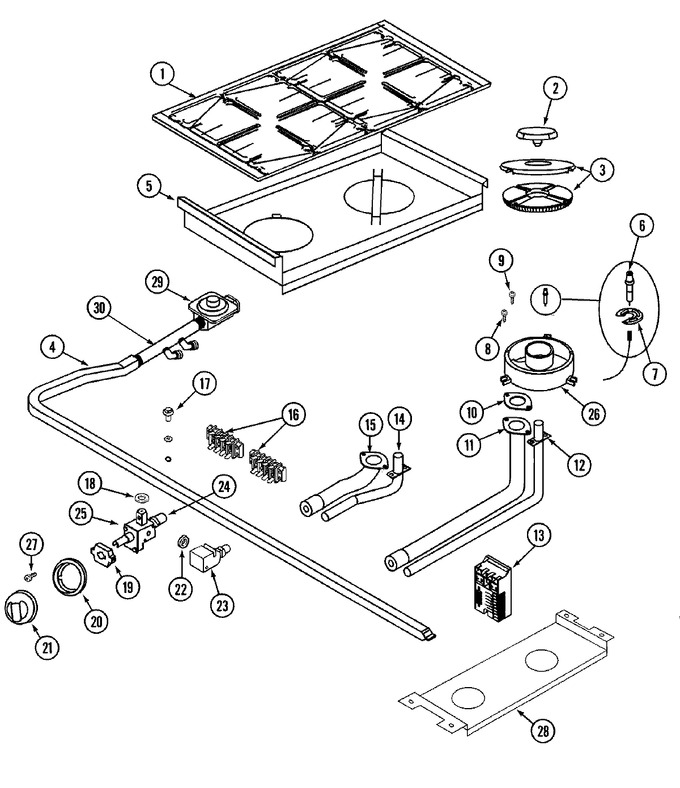

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001128 | Screw, Level | 10 |
|
- | ||||
| 1 | 73001005 | Grate | 10 |
|
- | ||||
| 2 | 73001210 | Cap, Simmer Tube | 10 |
|
- | ||||
| 3 | 73001211 | Ring, Simmer Burner | 10 |
|
- | ||||
| 4 | 73001084 | Pipe, Manifold 48 | 10 |
|
- | ||||
| 5 | 73001143 | Pan, Aeration | 10 |
|
- | ||||
| 6 | 73001080 | Harness, Wire (rt-top Burner) | 10 |
|
- | ||||
| 6 | 73001130 | Igniter, Top | 10 |
|
- | ||||
| 6 | 73001076 | Harness, Wire (top Burner) | 10 |
|
- | ||||
| 7 | 73001038 | Spring Clip, Electrode | 10 |
|
- | ||||
| 8 | 73001131 | Screw (no.10 X 3/4) | 10 |
|
- | ||||
| 9 | 73001215 | Bolt, Venturi | 10 |
|
- | ||||
| 10 | 73001054 | Gasket, Burner Head | 10 |
|
- | ||||
| 11 | 73001040 | Venturi, Main Rear | 10 |
|
- | ||||
| 12 | 73001133 | Venturi, Rear (simmer) | 10 |
|
- | ||||
| 12 | 73001134 | Nut, Venturi | 10 |
|
- | ||||
| 13 | 73001053 | Module, Spark | 10 |
|
- | ||||
| 14 | 73001135 | Venturi, Front (simmer) | 10 |
|
- | ||||
| 15 | 73001041 | Venturi, Main Front | 10 |
|
- | ||||
| 16 | 73001066 | Block, Terminal | 10 |
|
- | ||||
| 17 | 73001065 | Screw, Simmer Valve | 10 |
|
- | ||||
| 18 | 73001058 | ``o`` Ring, Simmer Valve | 10 |
|
- | ||||
| 19 | 73001052 | Switch, Spark Ignition | 10 |
|
- | ||||
| 20 | 73001055 | Bezel, Plated | 10 |
|
- | ||||
| 21 | 73001006 | Knob, Simmer | 10 |
|
- | ||||
| 22 | 73001058 | ``o`` Ring, Simmer Valve | 10 |
|
- | ||||
| 23 | 73001051 | Simmer Block | 10 |
|
- | ||||
| 23 | 73001136 | Hood, Simmer (lp) | 10 |
|
- | ||||
| 23 | 73001137 | Hood, Simmer Orifice (nat) | 10 |
|
- | ||||
| 24 | 73001138 | Hood, Orifice (lp) | 10 |
|
- | ||||
| 24 | 73001139 | Hood, Orifice (nat-simmer) | 10 |
|
- | ||||
| 25 | 73001050 | Valve W/ Hood | 10 |
|
- | ||||
| 26 | 73001016 | Base, Burner Ii | 10 |
|
- | ||||
| 27 | 73001141 | Screw, Bezel (blk) | 10 |
|
- | ||||
| 28 | 73001142 | Hanger, Burner | 10 |
|
- | ||||
| 29 | 73001126 | Regulator, Pressure | 10 |
|
$ 129.64 | ||||
| 30 | 73001087 | Oven Feed Adapter | 10 |
|
- |
