01 - 12`` Oven Controls
02 - 27`` Oven Controls
03 - Backguard Assembly
04 - Body/oven
05 - Door

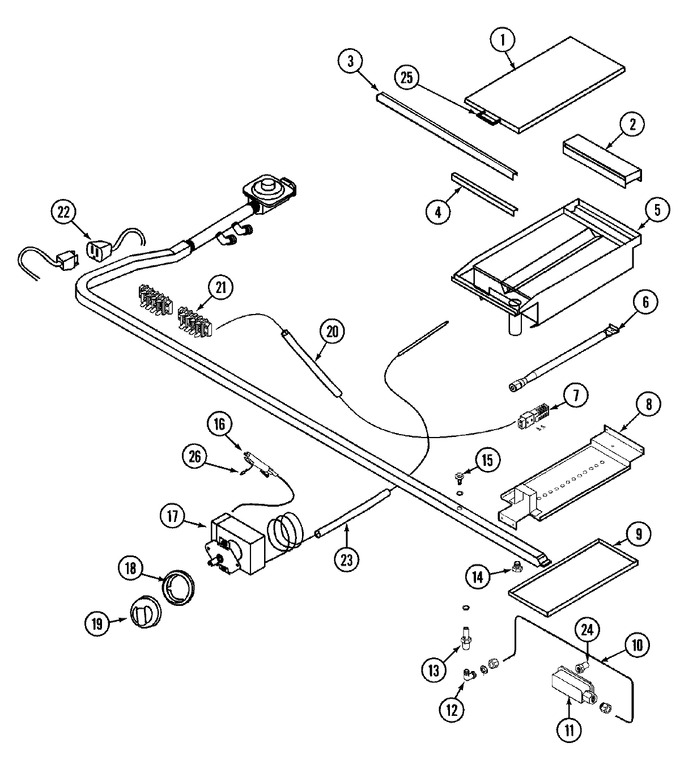

06 - Griddle Assembly
07 - Top Assembly & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001146 | Cover, Griddle | 10 |
|
- | ||||
| 2 | 73001022 | Cover, Griddle Flue | 10 |
|
- | ||||
| 3 | 73001147 | Trim, Griddle (frt) | 10 |
|
- | ||||
| 4 | 73001106 | Cover, Griddle Front Trim | 10 |
|
- | ||||
| 5 | 73001102 | Plate, Griddle | 10 |
|
- | ||||
| 6 | 73001035 | Burner, Broil & Griddle | 10 |
|
- | ||||
| 7 | 73001067 | Igniter, Rear | 10 |
|
- | ||||
| 8 | 73001103 | Baffle, Griddle | 10 |
|
- | ||||
| 9 | 73001119 | Liner, Drip Pan | 10 |
|
- | ||||
| 10 | 73001093 | Tubing, Griddle Formed | 10 |
|
- | ||||
| 11 | 73001108 | Valve, Single Thermal | 10 |
|
- | ||||
| 12 | 73001081 | Elbow, 3/8 Tod By 1/8 Npt | 10 |
|
- | ||||
| 13 | 73001086 | Adapter, 1/8 Npt | 10 |
|
- | ||||
| 14 | 73001085 | Pipe Plug, Brass Sq Man. | 10 |
|
- | ||||
| 15 | 73001065 | Screw, Simmer Valve | 10 |
|
- | ||||
| 16 | 73001070 | Light, Indicator (w/lens) | 10 |
|
- | ||||
| 17 | 73001047 | Thermostat | 10 |
|
- | ||||
| 17 | 73001078 | Harness, Wire Griddle | 10 |
|
- | ||||
| 18 | 73001055 | Bezel, Plated | 10 |
|
- | ||||
| 19 | 73001008 | Knob, Oven & Griddle | 10 |
|
- | ||||
| 20 | 73001148 | Sleeve, Fiberglass | 10 |
|
- | ||||
| 21 | 73001066 | Block, Terminal | 10 |
|
- | ||||
| 22 | 73001073 | Cord, Power | 10 |
|
- | ||||
| 23 | 73001148 | Sleeve, Fiberglass | 10 |
|
- | ||||
| 24 | 73001046 | Orifice No.47 | 10 |
|
- | ||||
| 25 | 73001149 | Handle, Griddle Cover | 10 |
|
- | ||||
| 25 | 73001131 | Screw (no.10 X 3/4) | 10 |
|
- | ||||
| 26 | 73001121 | Lens, Light | 10 |
|
- |
