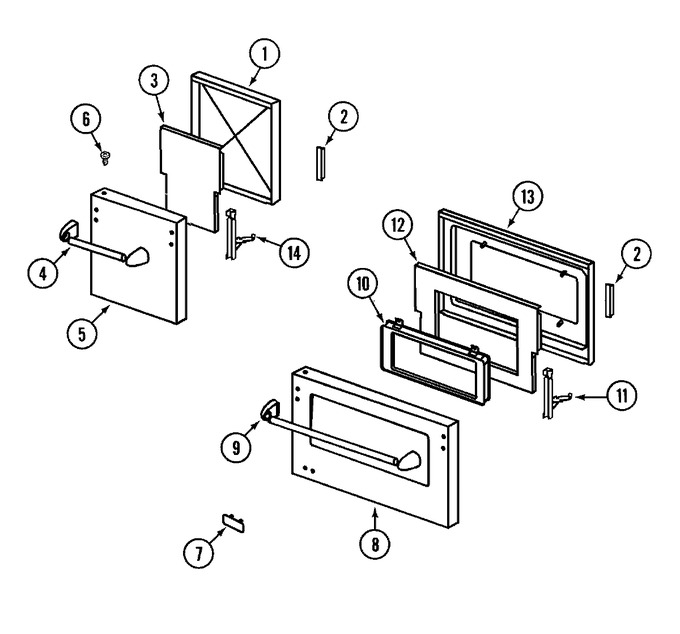

01 - 12`` Oven Controls
02 - 27`` Oven Controls
03 - Backguard Assembly
04 - Body/oven
05 - Door
06 - Griddle Assembly
07 - Top Assembly & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001101 | Lining, Door (12``) | 10 |
|
- | ||||
| 2 | 73001063 | Receptacle, Hinge | 10 |
|
- | ||||
| 3 | 73001111 | Retainer, Insulation (12``) | 10 |
|
- | ||||
| 4 | 73001029 | Panel, Door O/s (12) | 10 |
|
- | ||||
| 5 | 73001011 | Door Handle Assy. (12``) | 10 |
|
- | ||||
| 5 | 73001227 | Bolt, Door Handle | 10 |
|
- | ||||
| 6 | 73001112 | Screw, Door Panel | 10 |
|
- | ||||
| 7 | 73001018 | Nameplate (jenn-air) | 10 |
|
- | ||||
| 8 | 73001209 | Panel, Door Assy. (w/glass) | 10 |
|
- | ||||
| 9 | 73001010 | Door Handle Assy. (27``) | 10 |
|
- | ||||
| 10 | 73001114 | Window Assy. | 10 |
|
- | ||||
| 11 | 73001109 | Hinge, Door (27``) | 10 |
|
$ 137.81 | ||||
| 12 | 73001115 | Retainer, Insulation (27``) | 10 |
|
- | ||||
| 13 | 73001105 | Door Assy. | 10 |
|
- | ||||
| 14 | 73001062 | Hinge, Door 12`` | 10 |
|
- |
