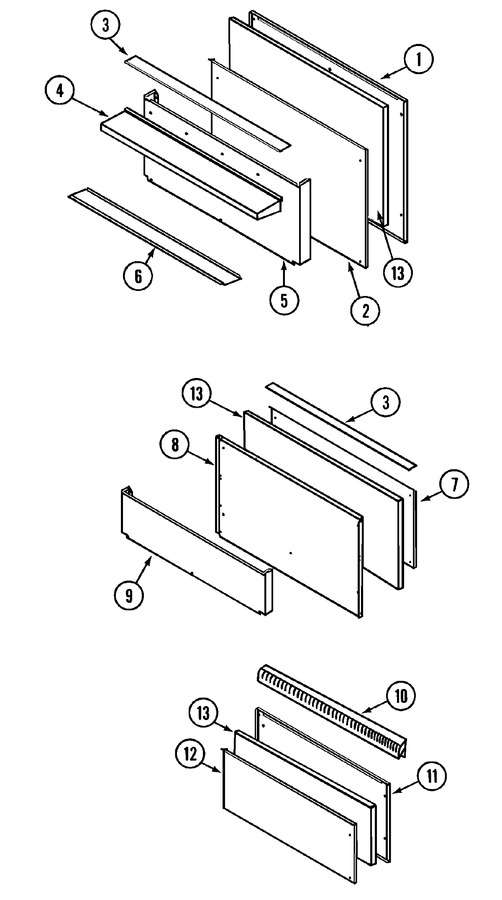

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001150 | Back Sheet, High Shelf | 10 |
|
- | ||||
| 2 | 73001151 | Retainer, High Shelf Insul. | 10 |
|
- | ||||
| 3 | 73001152 | High Shelf/low Back Top | 10 |
|
- | ||||
| 4 | 73001153 | High Shelf Weld Assy. | 10 |
|
- | ||||
| 5 | 73001154 | Front Sheet, High Shelf | 10 |
|
- | ||||
| 6 | 73001155 | Bottom Enclosure, High Shelf | 10 |
|
- | ||||
| 7 | 73001156 | Back Sheet, Low Back | 10 |
|
- | ||||
| 8 | 73001157 | Retainer, Low Back Insul. | 10 |
|
- | ||||
| 9 | 73001158 | Front Sheet, Low Back | 10 |
|
- | ||||
| 10 | 73001159 | Top Assy., Island Trim | 10 |
|
- | ||||
| 11 | 73001160 | Back Sheet, Island Trim | 10 |
|
- | ||||
| 12 | 73001161 | Retainer, Island Trim Insul. | 10 |
|
- | ||||
| 13 | 73001162 | Insulation | 10 |
|
- | ||||
| 14 | W10124350 | Not Required Part Or See Note Pra4812 Accessory Only | 10 |
|
- | ||||
| 15 | W10124350 | Not Required Part Or See Note Pra4822 Accessory Only | 10 |
|
- |
