SELECT A DIAGRAM

01 - 12`` Oven Controls


02 - 27`` Oven Controls


03 - Backguard Assembly


04 - Body/oven


05 - Door


06 - Griddle Assembly


07 - Top Assembly & Controls

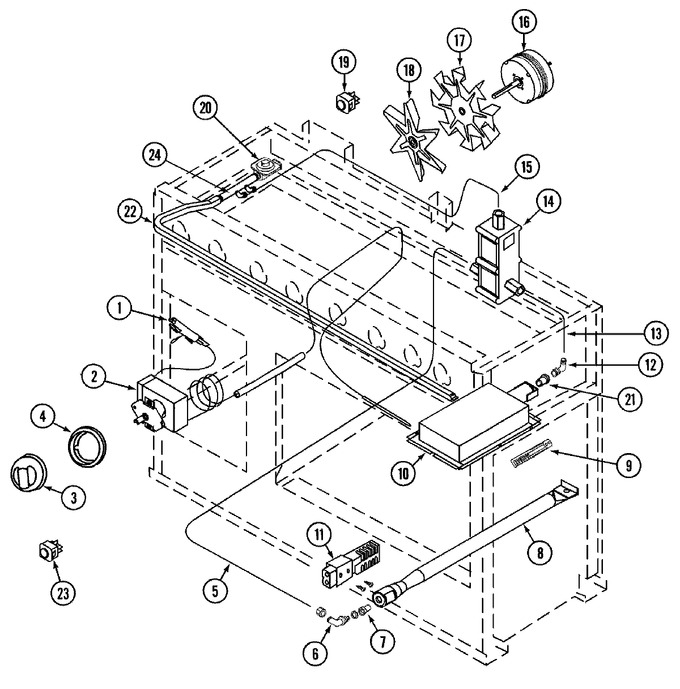

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001121		Lens, Light	10	Appelez-nous	-
1	73001070		Light, Indicator (w/lens)	10	Appelez-nous	-
2	73001079		Harness, Oven-valve/t`stat/ign	10	Appelez-nous	-
2	73001048		Thermostat, Oven Broil	10	Appelez-nous	-
3	73001007		Knob, Oven	10	Appelez-nous	-
4	73001055		Bezel, Plated	10	Appelez-nous	-
5	73001094		Tubing, Dual Valve To Oven	10	Appelez-nous	-
6	73001122		Elbow, Brass	10	Appelez-nous	-
7	73001123		Orifice, Oven Burner (nat)	10	Appelez-nous	-
7	73001124		Orifice, Oven Burner (lp)	10	Appelez-nous	-
8	73001036		Burner, Oven 27`` Rg	10	Appelez-nous	-
9	73001068		Igniter, Broil	10			$ 242.85
10	73001039		Air Shutter	10	Appelez-nous	-
10	73001090		Burner Assy., Infra Red	10	Appelez-nous	-
11	73001067		Igniter, Rear	10	Appelez-nous	-
12	73001122		Elbow, Brass	10	Appelez-nous	-
13	73001095		Tubing, Dual Valve To Ir Burnr	10	Appelez-nous	-
14	73001049		Valve, Dual Thermal Gas	10			$ 281.26
15	73001096		Tubing, Manifold To Dual Valve	10	Appelez-nous	-
16	73001069		Motor, Convection	10	Appelez-nous	-
17	73001072		Blade, Cooling	10	Appelez-nous	-
18	73001223		Cover, Convection Wheel	10	Appelez-nous	-
18	73001125		Blade, Convection	10	Appelez-nous	-
19	73001074		Switch, Light	10	Appelez-nous	-
20	73001126		Regulator, Pressure	10			$ 129.64
21	73001045		Orifice No.47	10			$ 23.66
21	73001127		Orifice, Broiler (lp)	10			$ 43.41
22	73001084		Pipe, Manifold 48	10	Appelez-nous	-
23	73001074		Switch, Light	10	Appelez-nous	-
24	73001087		Oven Feed Adapter	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
