Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Crushed Ice Bucket
02 - Crushed Ice Bucket

Diagram for 03 - Drain And Rollers
03 - Drain And Rollers

Diagram for 04 - Evap And Air Handling
04 - Evap And Air Handling

Diagram for 05 - Fz Door
05 - Fz Door

Diagram for 06 - Fz Door
06 - Fz Door

Diagram for 07 - Fz Shelving And Ref Light
07 - Fz Shelving And Ref Light

Diagram for 08 - Ice And Water Cavity
08 - Ice And Water Cavity

Diagram for 09 - Ice Maker
09 - Ice Maker

Diagram for 10 - Machine Compartment
10 - Machine Compartment

Diagram for 11 - Ref Door
11 - Ref Door

Diagram for 12 - Ref Door Hinge And Trim Parts
12 - Ref Door Hinge And Trim Parts

Diagram for 13 - Ref Shelving And Drawers
13 - Ref Shelving And Drawers

Diagram for 14 - Ref/fz Controls And Cabinet Parts
14 - Ref/fz Controls And Cabinet Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A1055101 Spring, Antikink Appelez-nous -
2 A1055105 Spring, Anti Kink Appelez-nous -
3 10244902 Coupling Appelez-nous -
4 M0108001 Clamp, Tube Appelez-nous -
5 10496302 Brkt, Water Valve Appelez-nous -
6 D7827205 Valve-water Appelez-nous -
7 10178404 O.c. Back Cover Appelez-nous -
8 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

9 M0232330 Screw, Spextite Appelez-nous -
10 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

11 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

12 M0753003 Nut, Sleeve Appelez-nous -
13 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

14 B5669005 Cord, Power Appelez-nous -
15 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

16 10178504 Cover - Wire Appelez-nous -
17 M0104102 Clip, Cord Special Order $ 8.10

18 12037401 Harness, Cabinet Appelez-nous -
19 A3189336 Gasket, Foam Appelez-nous -
20 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

21 10547001 Clip, Drier Appelez-nous -
22 B5794201 Clamp Appelez-nous -
23 WP489474 Screw   (Replaces: M0220634) In-Stock Immediately $ 8.55

24 M0227217 Screw, Sm Appelez-nous -
25 C8960601 Foot, Outer Case Appelez-nous -
26 A4554813 Snap Bushing Appelez-nous -
27 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

28 M0219758 Screw Appelez-nous -
29 M0233803 Screw, Tf Appelez-nous -
30 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

31 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

32 C8969204 Block, Term Appelez-nous -
33 Y10203701 Strain Relief Appelez-nous -
34 10377602 Insulation, Term Block Appelez-nous -
35 10786301 Jumper, Pwr Cord Appelez-nous -
36 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30

37 M0272803 Lock Washer Appelez-nous -
NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

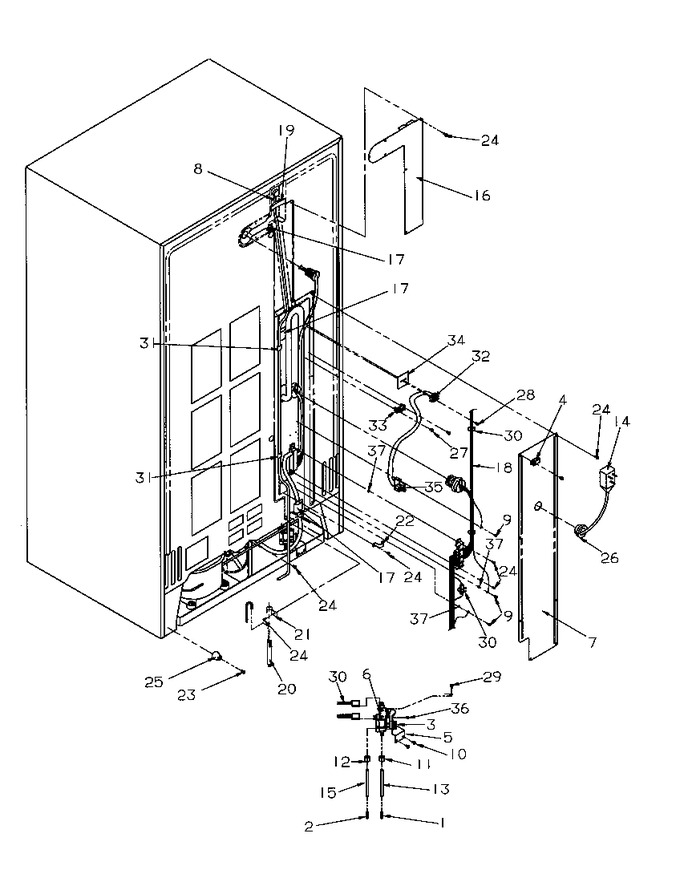

Diagram for SRD325S5L (BOM: P1199401W L)
