Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12041603 Assy, Mc Back Appelez-nous -
2 10507901 Pan, Drain Appelez-nous -
3 M0219704 Screw Appelez-nous -
4 10495701 Bracket, Drain Pan Mtg. Appelez-nous -
5 10129308 Timer-defrost 220/240 Vac 50/6 Appelez-nous -
6 M0118703 Clip, Guide Appelez-nous -
7 M0585601 Tab, Wire Tie Appelez-nous -
8 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

9 10877003 Bracket, Timer Appelez-nous -
10 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

11 M0213529 Screw Appelez-nous -
12 10518702 Blade, Fan Appelez-nous -
13 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 7.55

14 A4539601 Pop Rivet Appelez-nous -
15 B5696108 Brkt, Line Filter Appelez-nous -
16 M0272803 Lock Washer Appelez-nous -
17 M0221523 Screw, Shldr Appelez-nous -
18 10377016 Overload Appelez-nous -
19 A3293505 Bushing-snap Appelez-nous -
20 M0218118 Screw Appelez-nous -
21 10958302 Capacitor Appelez-nous -
22 10378302 Cover-terminal Appelez-nous -
23 10496501 Kit,shroud/brkt Sound Appelez-nous -
24 D7846903 Motor-condenser (230 Vac,50/60 Appelez-nous -
25 12020101 Comp-amer Rg111-12 G Appelez-nous -
26 12008101 Harness-mc Appelez-nous -
27 10602404 Kit,shroud/brkt Sound Appelez-nous -
28 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

29 A0329833 Insulation Appelez-nous -
30 M0223803 Screw Appelez-nous -
31 WP489128 Screw   (Replaces: M0253516) Special Order $ 11.40

32 10544108 Assy,cond/pan-e Ct Appelez-nous -
33 10628501 Spring, Term Cover Appelez-nous -
34 M0108001 Clamp, Tube Appelez-nous -
35 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

36 10097206 Relay Appelez-nous -
37 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

38 12039902 Back, M.c. Appelez-nous -
39 M0227217 Screw, Sm Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

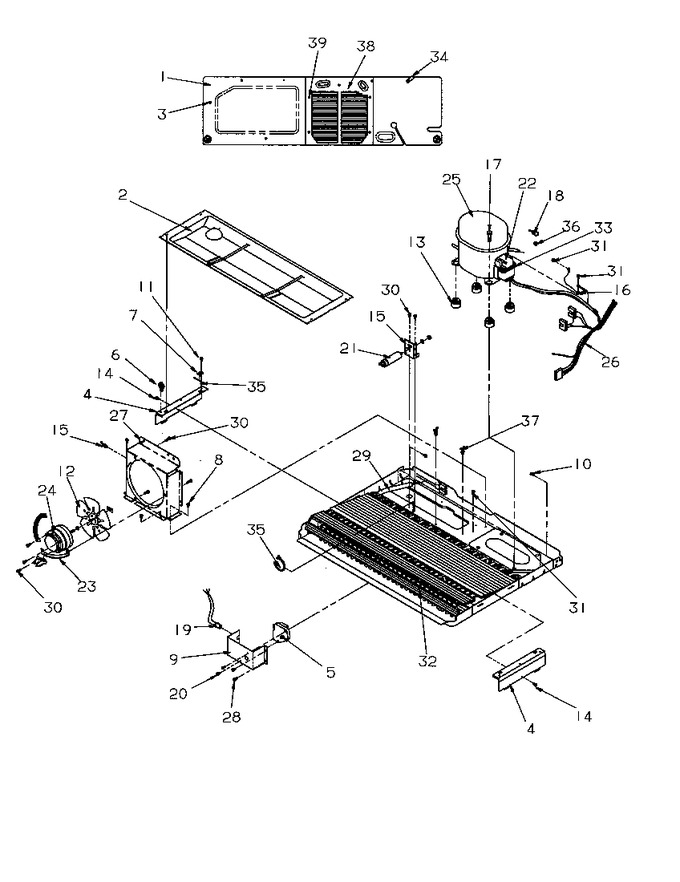

Diagram for SRD325S5L (BOM: P1199401W L)
