Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12138401 Harness-ref Light Appelez-nous -
2 12011903 Basket, 11`` Freezer Appelez-nous -
3 12012103 Shelf, Sld. Freezer Appelez-nous -
4 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
5 D7845204 Plate - Lt Socket Appelez-nous -
6 D7786602 Shield, Light Appelez-nous -
7 W11384469 Switch, Light   (Replaces: C3680308) In-Stock Immediately $ 39.09

8 18805 Switch   (Replaces: C3680309) Special Order $ 21.59

9 D7749002 Cover Light Appelez-nous -
10 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
11 M0219546 Screw Appelez-nous -
12 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

13 12013002 Rail, L. Dbl Shelf Appelez-nous -
14 10991802 Rail- R Double Appelez-nous -
15 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

16 M0580007 Grommet, Screw Appelez-nous -
17 12018701 Harness, Frz Liner Appelez-nous -
18 D7845101 Socket, Lamp Appelez-nous -
19 D7297603 Cover, Light Sw Appelez-nous -
20 D7716410 Housing-ref Light Appelez-nous -
21 D7845102 Socket, Lamp Appelez-nous -
22 10870801 Shelf, Ice Cream Appelez-nous -
23 10991403 Rail-r Shelf Appelez-nous -
24 10270202 Housing Light Appelez-nous -
25 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

26 12011703 Basket, 3`` Freezer Appelez-nous -
27 Y10270101 Cover-light Appelez-nous -
28 D7845102 Socket, Lamp Appelez-nous -
29 A3189337 Gasket Appelez-nous -
30 10014716 Shield, Light Appelez-nous -
31 10493202 Cover, Ref. Light Appelez-nous -
32 M0270508 Washer Appelez-nous -
33 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

34 12012803 Rail, L. Dbl Shelf Appelez-nous -
35 12011803 Basket, 7`` Freezer Appelez-nous -
36 A4554813 Snap Bushing Appelez-nous -
37 A4539626 Pop Rivet Appelez-nous -
38 10250002 Cover, Wire Appelez-nous -
39 D7844902 Socket Cover Appelez-nous -
40 M0320905 Terminal Ground A Appelez-nous -
41 M0213129 Screw Appelez-nous -
42 D7844803 Socket Shield Appelez-nous -
43 M0217225 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

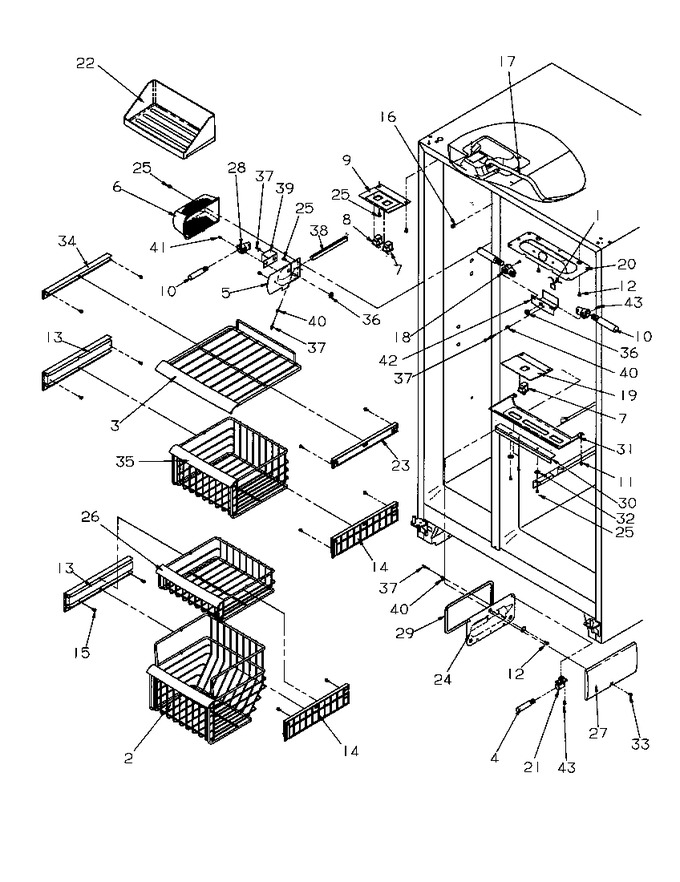

Diagram for SRD325S5L (BOM: P1199401W L)
