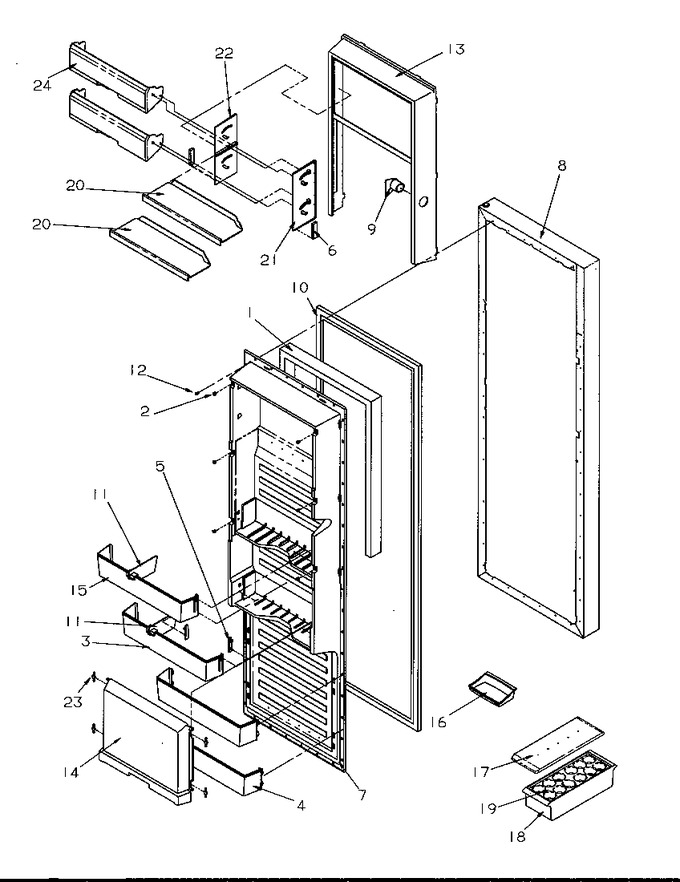

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523590		Insul., Batt		Appelez-nous	-
2	10165101		Clip-tubular		Appelez-nous	-
3	10520410		Shelf, Chiller		Appelez-nous	-
4	10521814		Shelf-ref Door		Appelez-nous	-
5	10202001		Clip, Retainer		Appelez-nous	-
6	B5759646		Gasket, Sealing		Appelez-nous	-
7	10861501		Liner-ref Dr		Appelez-nous	-
8	10881310L		Ass`y, Ref Dr Foam		Appelez-nous	-
9	12033201		Tunnel-air		Appelez-nous	-
10	10359701		Gasket, Door (w Ref)		Appelez-nous	-
11	10169004		Snugger, Shelf		Appelez-nous	-
12	M0219730		Screw				$ 7.65
13	10519004		Frame-chiller		Appelez-nous	-
14	10519208		Door, Chiller		Appelez-nous	-
15	10520415		Shelf, Chiller		Appelez-nous	-
16	10310901		Tray, Butter		Appelez-nous	-
17	10436404		Lid, Utility				$ 60.85
18	10423128		Bin-utility		Appelez-nous	-
19	10436505		Tray, Egg		Appelez-nous	-
20	10883801		Shelf, Dairy		Appelez-nous	-
21	10884001		Track, Dairy Dr		Appelez-nous	-
22	10884002		Track, Dairy Dr		Appelez-nous	-
23	10162101		Glide-igloo Door		Appelez-nous	-
24	10883701		Door-dairy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
