Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12085725 Insert, Shelf Appelez-nous -
1 12085724 Insert, Shelf Appelez-nous -
1 12085702 Insert, Shelf Appelez-nous -
1 12085701 Insert, Shelf Appelez-nous -
2 10852501 Slide, Crisper/deli Appelez-nous -
3 12113001 Trim, Crisper Frt Appelez-nous -
4 10882701 Band, Crisper Appelez-nous -
5 10783103 Shelf Top Crisper Appelez-nous -
6 Y10370066 Glass, Shelf Appelez-nous -
7 D7599003 Ladder, Center Appelez-nous -
8 10783201 Pan,crisper Appelez-nous -
9 10782901 Frame,crisper Appelez-nous -
10 10876302 Director-deli Appelez-nous -
11 10986401 Band, Deli Appelez-nous -
12 10809713 Shelf-split Glide Appelez-nous -
13 10872701 Gasket, Deli Appelez-nous -
14 M0581001 Grommet, Screw Appelez-nous -
15 10809503 Assy, Shelf Appelez-nous -
16 10809602 Shelf-full Sta Appelez-nous -
17 10784001 Sleeve,deli Appelez-nous -
18 10784201 Pan, Deli Appelez-nous -
19 10872601 Manifold, Deli Appelez-nous -
20 10783803 Frame, Deli Appelez-nous -
21 M0238229 Screw Appelez-nous -
22 D7789808 Ladder, Cantilever Appelez-nous -
22 D7789809 Ladder, Cantilever Appelez-nous -
23 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

24 M0580007 Grommet, Screw Appelez-nous -
25 10968801 Seal-crisp Front Appelez-nous -
26 C8992302 Brkt-control Cover Appelez-nous -
27 M0230923 Screw Appelez-nous -
28 10481001 Roller, Pan Special Order $ 10.99

29 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

30 10875101 Stop, Shelf Appelez-nous -
31 M0051701 Pad-bumper Appelez-nous -
32 10873802 Extr, Rear Deli Appelez-nous -
33 10992301 Rack, Utility Appelez-nous -
NI 10883306 Ass`y, Shelf/insert Appelez-nous -
NI 10882801 Assy, Crisper Frame Appelez-nous -
NI 10882803 Assy, Crisper Frame Appelez-nous -
NI 10883305 Ass`y, Shelf/insert Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

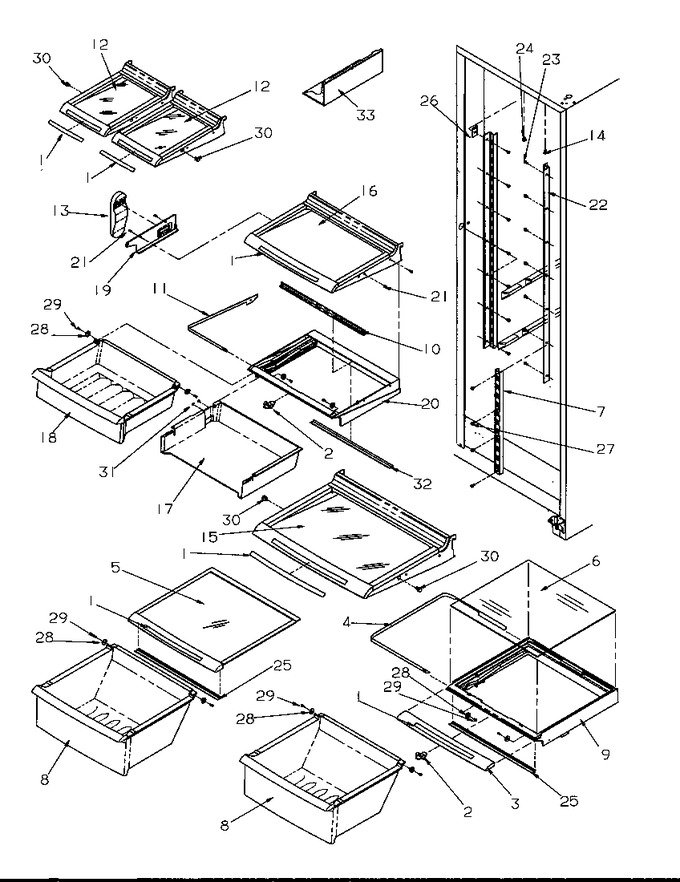

Diagram for SRD325S5L (BOM: P1199401W L)
