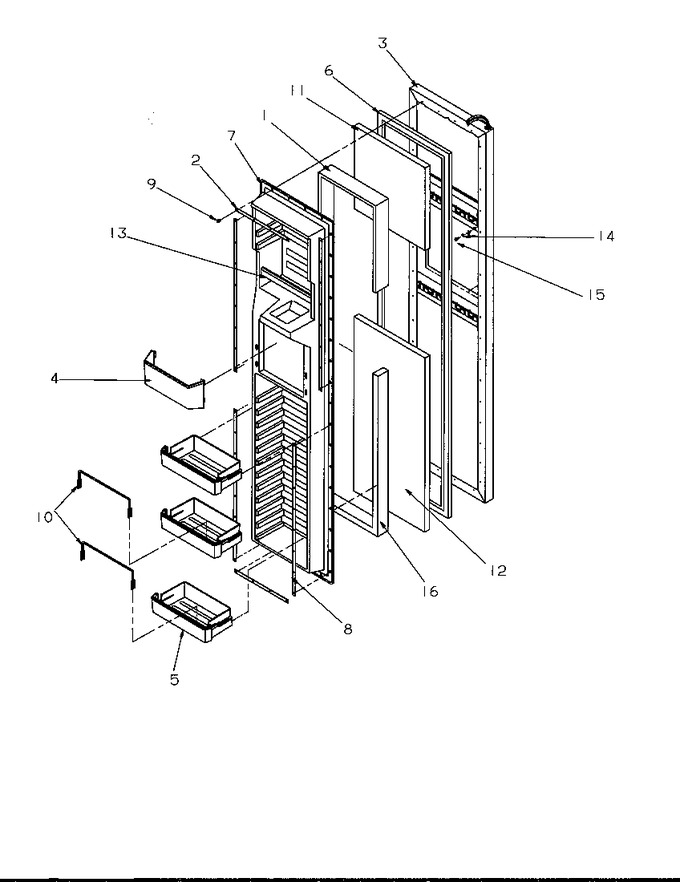

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	C8982801		Retainer, Door Liner		Appelez-nous	-
3	10881206L		Ass`y, Frz Door(almond)		Appelez-nous	-
4	10534707		Shelf, Half Frz		Appelez-nous	-
5	10521707		Bucket, Frz Dr		Appelez-nous	-
6	10359702		Gasket (w Frz Dr)		Appelez-nous	-
7	10860901		Liner-i&w Fz Dr		Appelez-nous	-
8	D7828601		Retainer, Door Liner		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10237602		Retainer, Package		Appelez-nous	-
11	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
12	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
13	10525513		Shelf, Frz Dr		Appelez-nous	-
14	M0272803		Lock Washer		Appelez-nous	-
15	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
16	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
