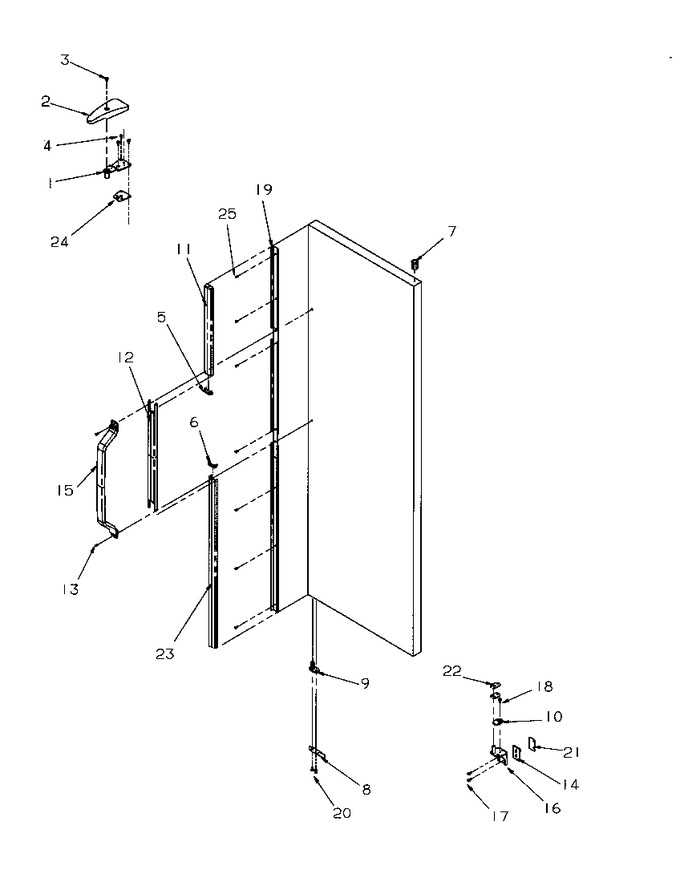

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10495803		Hinge, Top (e-ct)		Appelez-nous	-
2	10849402		Cover-l Hinge		Appelez-nous	-
3	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.55
4	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
5	10953114		Insert, Trim (almond)		Appelez-nous	-
6	10953113		Insert, Door Trim		Appelez-nous	-
7	10393802		Bushing, Door (wht)		Appelez-nous	-
8	C8972406		Stop, L Door		Appelez-nous	-
9	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
10	R0181181		Kit,dr Closure   (Replaces: 12113502)			Immediately	$ 7.55
11	10810310		Trim-l Top Ref Dr		Appelez-nous	-
12	10810402		Trim, L Ctr Door		Appelez-nous	-
13	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
14	10399502		Kit,btm Hinge Shim		Appelez-nous	-
14	10399501		Kit,btm Hinge Shim		Appelez-nous	-
15	10809002		Kit, Sxs Hndl (l)		Appelez-nous	-
16	10496105		Kit,hinge Rh Btm(b)		Appelez-nous	-
17	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
18	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
19	10852214		Retainer-ref Trim		Appelez-nous	-
20	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
21	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
22	B8387703		Shim, Door Closure		Appelez-nous	-
22	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
23	10810510		Trim, Bot Ref Dr L		Appelez-nous	-
24	B8389007		Shim, Top Hinge		Appelez-nous	-
25	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
