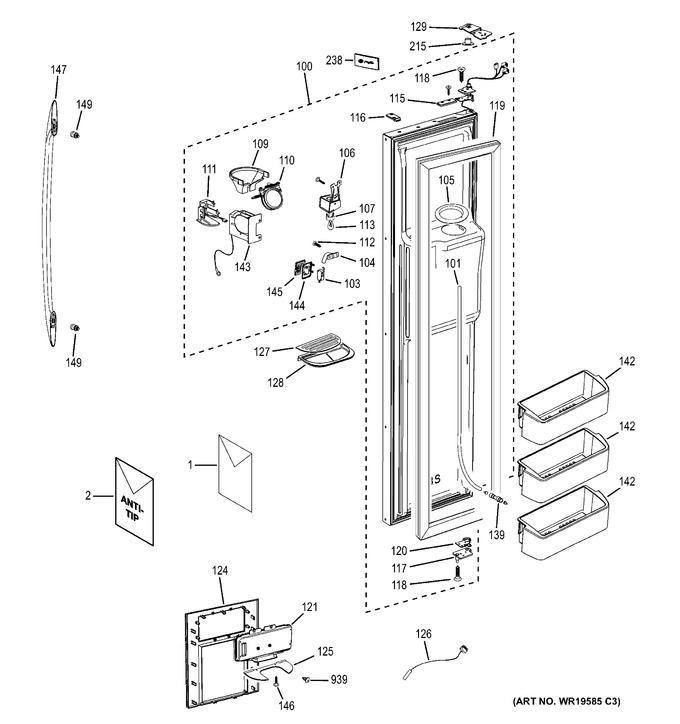

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51582 | Mini Manual |
|
- | |||||
| 1 | 49-60296-1 | Use & Care Manual |
|
- | |||||
| 2 | WR02X12260 | Anti Tip Bracket |
|
- | |||||
| 100 | WR78X12304 | Door Asm Fz Ss |
|
- | |||||
| 101 | WR02X11890 | Tube-water Line A |
|
- | |||||
| 103 | WR23X10396 | Switch-micro |
|
- | |||||
| 104 | WR02X11891 | Cap-tube Water Line |
|
- | |||||
| 105 | WR02X11892 | Cap-chute Ice |
|
- | |||||
| 106 | WR02X11894 | Brkt-socket Lamp Disp |
|
- | |||||
| 107 | WR02X11893 | Socket Lamp Disp |
|
- | |||||
| 109 | WR17X12602 | Funnel Bk |
|
- | |||||
| 110 | WR17X11746 | Duct Door Asm |
|
- | |||||
| 111 | WR17X11764 | Micros/hrns/supt Asm |
|
- | |||||
| 112 | WR02X11930 | Screw-tapping |
|
- | |||||
| 113 | WG03A03944 | Bulb Recs 12v (Replaces: WR02X10675) |
|
Immediately | $ 60.67 | ||||
| 115 | WR02X11895 | Strike Switch |
|
- | |||||
| 116 | WR02X11896 | Assy-stopper Door,a |
|
- | |||||
| 117 | WR02X11897 | Asm Bracket Hinge Low |
|
- | |||||
| 118 | WR02X11898 | Screw-special |
|
- | |||||
| 119 | WR24X10179 | Gasket Door Asm Fz |
|
- | |||||
| 120 | WR13X10350 | Shim Hinge-upp,r |
|
- | |||||
| 121 | WR17X12606 | Control Dispenser Bk |
|
- | |||||
| 124 | WR17X12605 | Trim Dispenser (silver) |
|
- | |||||
| 125 | WR02X11929 | Cover Lamp-dispenser |
|
- | |||||
| 126 | WR50X10062 | Thermistor - Ext Temp |
|
- | |||||
| 127 | WR17X12604 | Grille Recess Bk |
|
- | |||||
| 128 | WR17X12603 | Tray-disp Bk |
|
- | |||||
| 129 | WR13X10343 | Hinge Upper Fz |
|
- | |||||
| 139 | WR02X13192 | Tube-fitting, A |
|
- | |||||
| 139 | WR01X10970 | Clip Fitting Lock |
|
- | |||||
| 142 | WR71X10599 | Door Module Fz |
|
- | |||||
| 143 | WR60X10180 | Motor & Cam - Duct Door |
|
- | |||||
| 144 | WR02X12943 | Trim Pad Cradle |
|
- | |||||
| 145 | WR02X11945 | Pad Cradle |
|
- | |||||
| 146 | WR01X10468 | Screw-tapping |
|
- | |||||
| 147 | WR12X10938 | Handle Bar |
|
- | |||||
| 149 | WR01X10851 | Fixer-handle |
|
- | |||||
| 215 | WR02X11903 | Thimble Hinge Upper |
|
- | |||||
| 238 | WR02X12636 | Mascot |
|
- | |||||
| 939 | 6002-000217 | Screw-tapping (Replaces: WR01X10461) |
|
$ 0.85 |
