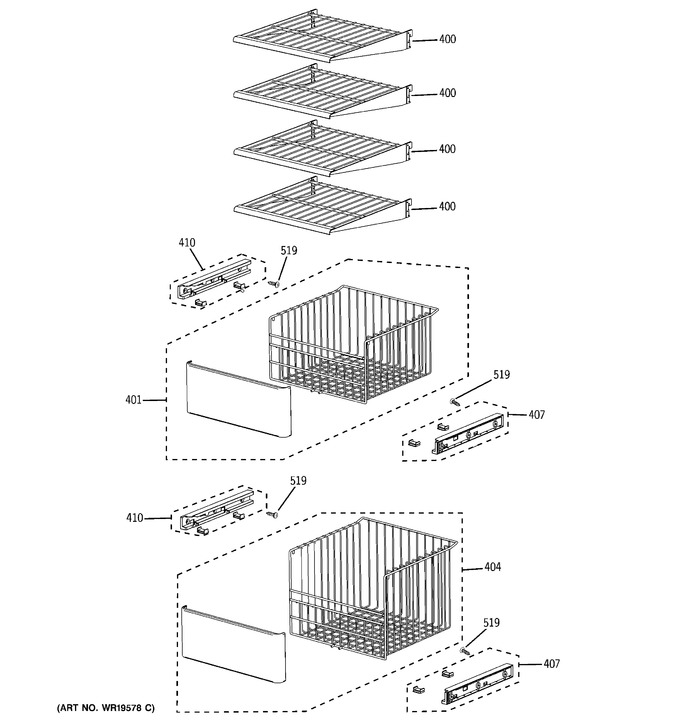

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR71X10596		Shelf Wire Asm		Appelez-nous	-
401	WR21X10099		Asm-basket Wire Upper		Appelez-nous	-
404	WR21X10100		Asm-basket Wire Low		Appelez-nous	-
407	WR17X11727		Rail Rh Basket Fz		Appelez-nous	-
410	WR17X11728		Rail Lh Basket Fz		Appelez-nous	-
519	6002-001341		Screw-tapping   (Replaces: WR02X11866)				$ 0.85
