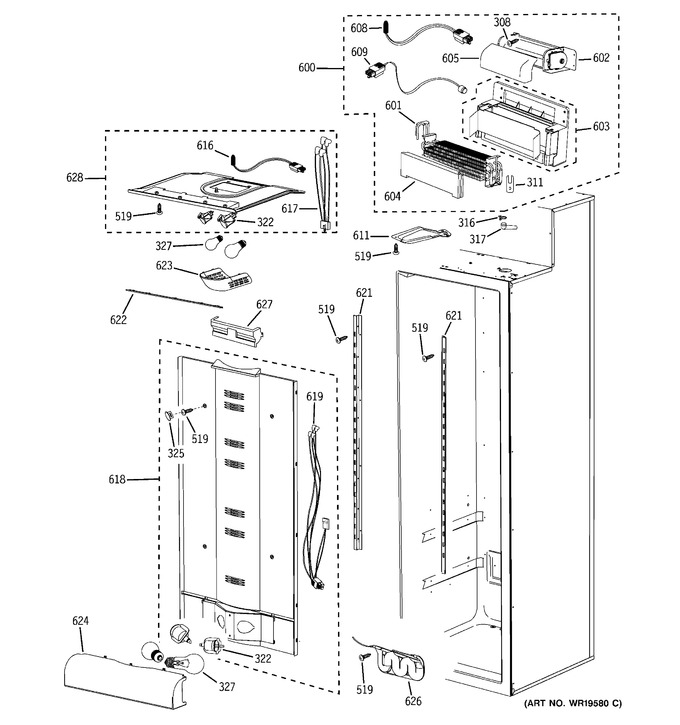

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
308	WR02X11871		Screw-tapping		Appelez-nous	-
311	WR02X11872		Bracket Thermostat Fz		Appelez-nous	-
316	WR02X11873		Clamp Hose Fz		Appelez-nous	-
317	WR02X11874		Drain Connector Fz		Appelez-nous	-
322	WR01F00746		Socket Lamp   (Replaces: WR02X10732)				$ 11.08
325	WR02X11878		Cap-screw		Appelez-nous	-
327	40A15		40watt 15amp			Immediately	$ 1.98
519	6002-001341		Screw-tapping   (Replaces: WR02X11866)				$ 0.85
600	WR85X10065		Complete Evap Asm Ff		Appelez-nous	-
601	WR85X10063		Evap/defrost Htr Asm Ff		Appelez-nous	-
602	WR60X10179		Assy-fan Motor Ref		Appelez-nous	-
603	WR17X11739		Assy-case Evap Ref		Appelez-nous	-
604	WR02X11884		Cover Evap Front Ff		Appelez-nous	-
605	WR82X10099		Insulation Evap Mtr Ff		Appelez-nous	-
608	WR50X10059		Thermistor Ff Evap		Appelez-nous	-
609	WR50X10060		Thermostat Defrost Ff Ev		Appelez-nous	-
611	WR02X11885		Drain Trough Asm Ff		Appelez-nous	-
616	WR50X10061		Thermistor Ff		Appelez-nous	-
617	WR23X10394		Harness Upper Lights Ff		Appelez-nous	-
618	WR17X11741		Cover Duct Asm Ff		Appelez-nous	-
619	WR23X10395		Harness Lower Lights Ff		Appelez-nous	-
621	WR17X11742		Track Shelving Ff		Appelez-nous	-
622	WR02X11886		Cover-grille Ff		Appelez-nous	-
623	WR02X11887		Shield Lamp Upper Ff		Appelez-nous	-
624	WR02X11888		Shield Lamp Lower Ff		Appelez-nous	-
626	WR17X11743		Water Tank Asm		Appelez-nous	-
627	WR17X11744		Cover Duct Upper Ff Asm		Appelez-nous	-
628	WR17X11808		Hsng Upper Light Asm Ff		Appelez-nous	-
