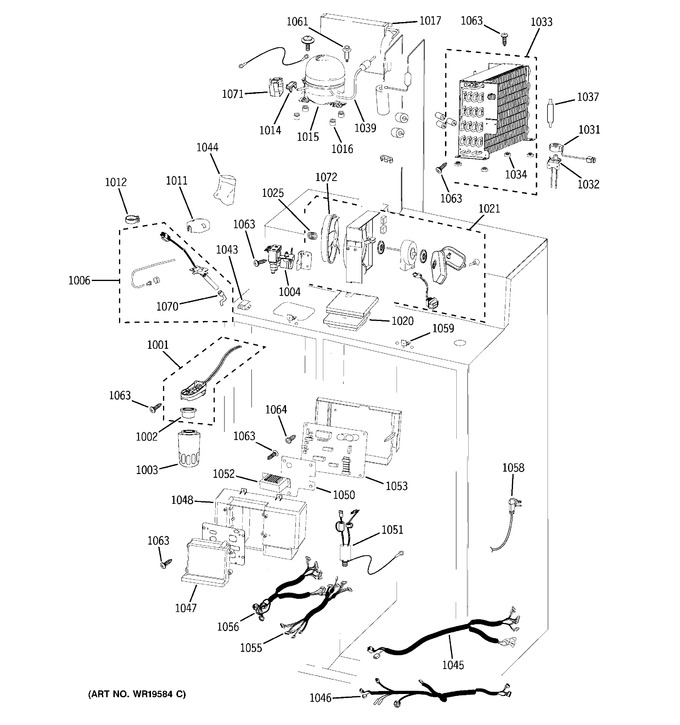

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1001 | WR17X11756 | Filter Head |
|
- | |||||
| 1002 | WR02X11912 | Plug Bypass Filter |
|
- | |||||
| 1003 | PMMWF | Water Filter Ref Cyst (Replaces: GWF) |
|
Immediately | $ 78.60 | ||||
| 1004 | WR57X10040 | Water Valve Assy W/o Gua |
|
$ 71.10 | |||||
| 1006 | WR02X11913 | Fill Tube Asm |
|
- | |||||
| 1011 | WR02X11914 | Cover Fill Tube Asm |
|
- | |||||
| 1012 | WR02X11927 | Clamp |
|
- | |||||
| 1014 | WR07X10088 | Relay Protector O/l |
|
- | |||||
| 1015 | WR87X10115 | Compressor |
|
- | |||||
| 1016 | DA63-02017A | Grommet-comp (Replaces: WR02X11915) |
|
$ 6.38 | |||||
| 1017 | WR17X11757 | Heat Exchanger Asm |
|
- | |||||
| 1020 | WR02X11916 | Foam Insulation Block |
|
- | |||||
| 1021 | WR60X10177 | Condenser Fan Asm |
|
- | |||||
| 1025 | WR01X10436 | Retaining Spring Fan |
|
- | |||||
| 1031 | WR57X10059 | 3 Way Valve Coil |
|
- | |||||
| 1032 | WR57X10054 | 3-way Valve |
|
- | |||||
| 1033 | WR84X10068 | Condenser Asm |
|
- | |||||
| 1034 | WR02X11917 | Grommet-cond |
|
- | |||||
| 1037 | WR86X10080 | Dryer |
|
- | |||||
| 1039 | WR02X11918 | Tubing Suction Line |
|
- | |||||
| 1043 | WR02X12121 | Cover-connector W/foam |
|
- | |||||
| 1044 | WR02X11926 | Bag Envelope-pe |
|
- | |||||
| 1045 | WR23X10397 | Harness Ac Asm |
|
- | |||||
| 1046 | WR23X10398 | Harness Dc Asm |
|
- | |||||
| 1047 | WR02X11919 | Cover-housing |
|
- | |||||
| 1048 | WR17X11758 | Cover-pcb Panel |
|
- | |||||
| 1050 | WR02X11920 | Cover-noise Filter |
|
- | |||||
| 1051 | WR62X10067 | Emi Noise Filter |
|
- | |||||
| 1052 | WR17X11767 | Coil Filter-reactor |
|
- | |||||
| 1053 | WR55X10428 | Main Pcb Asm |
|
- | |||||
| 1055 | WR23X10399 | Harness Ac Asm |
|
- | |||||
| 1056 | WR23X10400 | Harness Ac Asm |
|
- | |||||
| 1058 | WR23X10463 | Power Cord |
|
- | |||||
| 1059 | WR02X11921 | Bracket Access Cover |
|
- | |||||
| 1061 | WR01X10437 | Bolt Compressor |
|
- | |||||
| 1063 | WG03A00521 | Screw-tapping (Replaces: WR01X10463) |
|
Immediately | $ 5.72 | ||||
| 1064 | WR01X10464 | Screw-tapping |
|
- | |||||
| 1070 | WR02X11948 | Grommet-pipe Water Fill |
|
- | |||||
| 1071 | DA63-01866A | Cover Relay (Replaces: WR02X11949) |
|
$ 18.68 | |||||
| 1072 | WR60X10181 | Blade Condenser Fan |
|
- |
