10 - Cabinet (2)


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Cabinet (1)

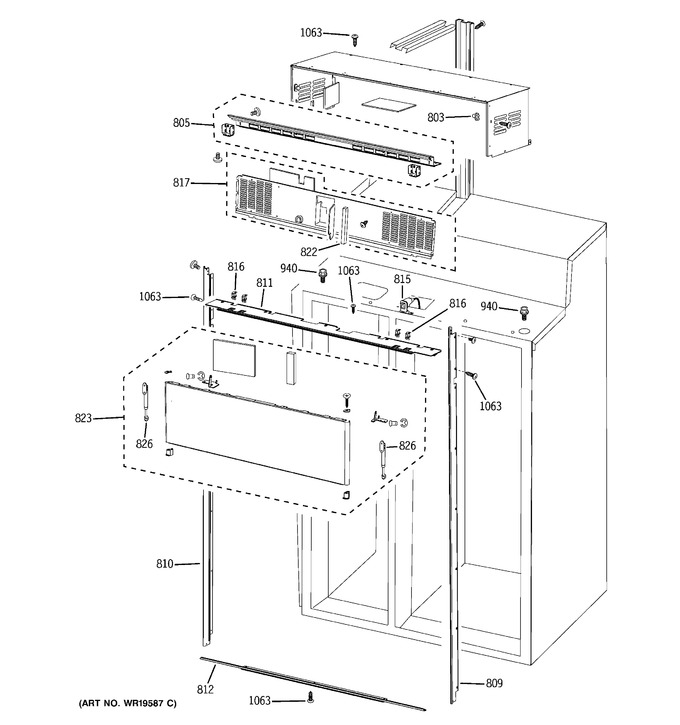

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
803	WR02X11889		Shock Post		Appelez-nous	-
805	WR17X11759		Trim Frame Upper		Appelez-nous	-
809	WR38X10343		Trim Frame Rh		Appelez-nous	-
810	WR38X10344		Trim Frame Lh		Appelez-nous	-
811	WR38X10346		Trim Light Switches		Appelez-nous	-
812	WR38X10345		Trim Frame Bottom		Appelez-nous	-
815	WR23X10401		Switch Asm Main		Appelez-nous	-
816	WG03A03078		Switch Light   (Replaces: WR23X10175)			Immediately	$ 11.39
817	WR82X10098		Access Cover		Appelez-nous	-
822	WR02X11922		Foam Seal		Appelez-nous	-
823	WR74X10192		Assy-grille		Appelez-nous	-
826	WR02X11923		Gas Shock		Appelez-nous	-
940	WR01X10462		Bolt 10mm		Appelez-nous	-
1063	WG03A00521		Screw-tapping   (Replaces: WR01X10463)			Immediately	$ 5.72
