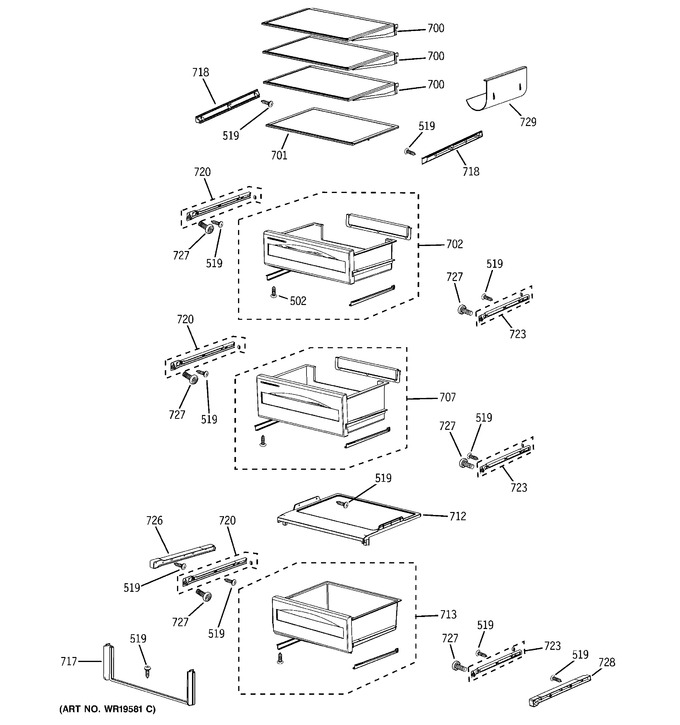

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
502	6002-000471		Screw-tapping   (Replaces: WR02X11865)				$ 0.85
519	6002-001341		Screw-tapping   (Replaces: WR02X11866)				$ 0.85
700	WR71X10597		Shelf Glass Ff		Appelez-nous	-
701	WR71X10598		Shelf Glass Ff Lower		Appelez-nous	-
702	WR32X10495		Pan Veg Upper		Appelez-nous	-
707	WR32X10496		Pan Veg Mid		Appelez-nous	-
712	WR32X10497		Cover Veg Pan Lower		Appelez-nous	-
713	WR32X10498		Pan Veg Lower		Appelez-nous	-
717	WR02X11880		Support Lower Veg Pan		Appelez-nous	-
718	WR17X11735		Rail Lower Glass Shelf F		Appelez-nous	-
720	WR17X11736		Rail Veg Pans Lh		Appelez-nous	-
723	WR17X11737		Rail Veg Pans Rh		Appelez-nous	-
726	WR02X11881		Support Rail Lh		Appelez-nous	-
727	WR02X11882		Roller Veg Pan		Appelez-nous	-
728	WR02X11883		Support Rail Rh		Appelez-nous	-
729	WR17X11738		Shelf-wine		Appelez-nous	-
	WG03A01522		Support-case Evap Ref Kit				$ 36.88
	WG03F00481		Pf Built In Drain Fz Kit				$ 91.78
	WG03F02639		Complete Evap Asm Ff				$ 547.92
	WG03F03424		Power Cord				$ 128.63
	WR01F02887		Motor Fan Asm Fz				$ 278.68
	WR01F02894		Compressor				$ 478.54
	WR01F03655		Main Pcb Asm				$ 658.40
	WR01F03662		Fan Motor Asm Ff				$ 437.73

    View Diagram in Separate Window       Print Part List
