Diagram # Part Number Description Series Availability Ships Price Add to Cart
900 WR13X10346 Complete Hinge Asm Lh Appelez-nous -
904 WR02X11906 Shock Absorber Lh Appelez-nous -
908 WR13X10347 Hinge Arm Link Lh Appelez-nous -
909 WR13X10348 Complete Hinge Asm Rh Appelez-nous -
913 WR02X11907 Shock Absorber Rh Appelez-nous -
918 WR13X10349 Hinge Arm Link Rh Appelez-nous -
920 WR02X12296 Assy Grommet Link Appelez-nous -
925 WR17X11752 Leveling Jack Rear Appelez-nous -
926 WR02X11909 Caster Asm Appelez-nous -
927 WR02X11910 Thimble Hinge Lower Appelez-nous -
929 WR17X11762 Condenser Drain Pan Appelez-nous -
931 WR02X11925 Support Drain Pan Rear Appelez-nous -
932 WR17X11753 Condenser Support Asm Appelez-nous -
935 WR17X11754 Drain Pan Appelez-nous -
936 WR17X11755 Panel Toe Kick Appelez-nous -
937 WR02X11911 Cover-water Line Appelez-nous -
938 WR01X10460 Screw-machine Appelez-nous -
939 6002-000217 Screw-tapping   (Replaces: WR01X10461) Special Order $ 0.85

940 WR01X10462 Bolt 10mm Appelez-nous -
945 WR02X11947 Fixer-grommet Door Appelez-nous -
1034 WR02X11917 Grommet-cond Appelez-nous -
1063 WG03A00521 Screw-tapping   (Replaces: WR01X10463) In-Stock Immediately $ 5.72


    View Diagram in Separate Window     Print Icon   Print Part List

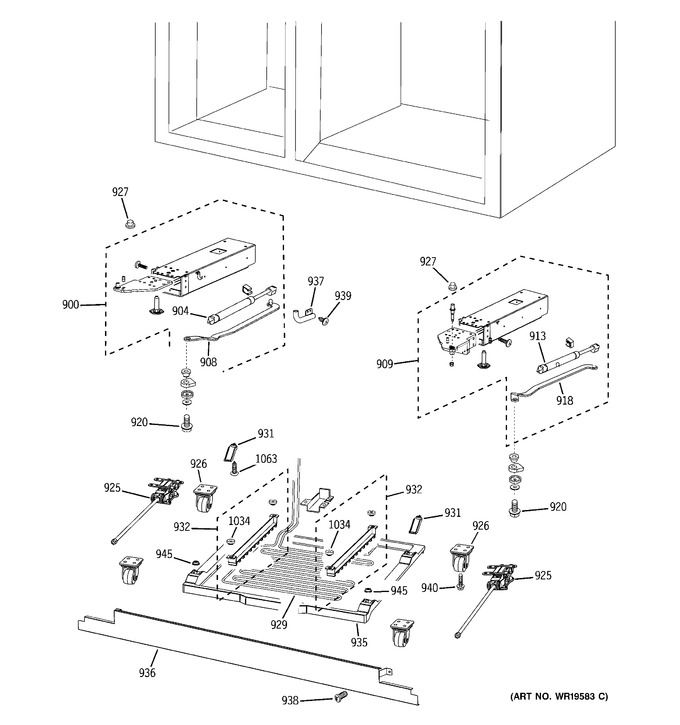

Diagram for PSB42YSXASS
