SELECT A DIAGRAM

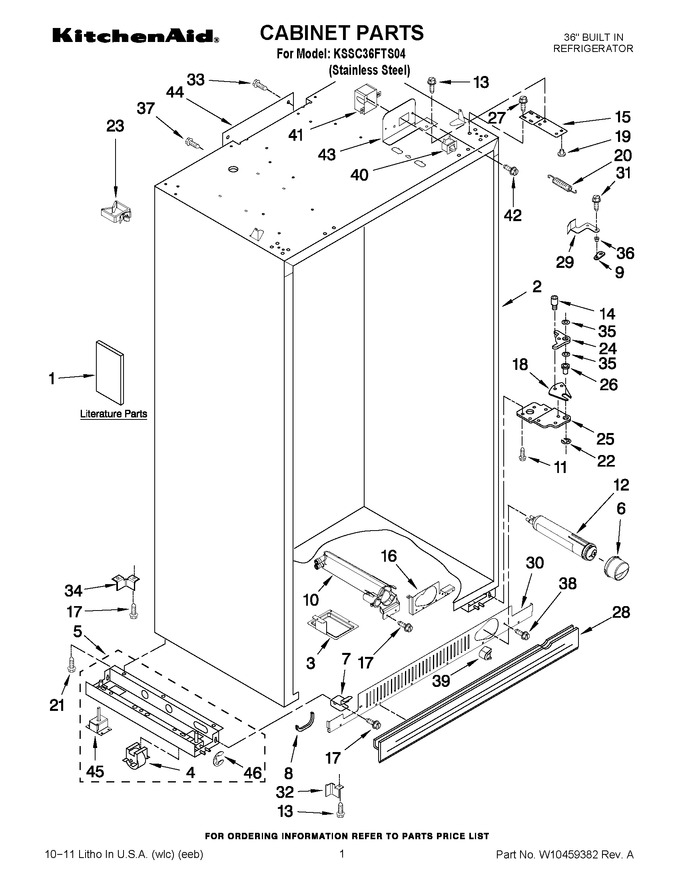

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10159831		Service & Wiring Sheet		Appelez-nous	-
1	W10303989		Use & Care Guide		Appelez-nous	-
1	W10205636		Energy Guide		Appelez-nous	-
1	W10379133		Service Sheet (installation Instructions)		Appelez-nous	-
1	2306337		Icemaker And Ingredient Care Center		Appelez-nous	-
1	W10295452		Service Sheet (main Control)		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 141.65
4	WPW10138054		Roller, Front & Rear   (Replaces: W10138054)				$ 43.18
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: W10138423)			Immediately	$ 364.76
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: W10279275)				$ 363.65
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
7	W10839844		Mounting Stud, Grille   (Replaces: 2307640)				$ 41.20
8	2307584		Grommet, Crossover Tube				$ 22.29
9	2005783		Cam, Door Closer				$ 26.20
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
13	WP489399		Screw   (Replaces: 489399)				$ 6.95
14	W11769878		Screw, Door Stop   (Replaces: 3400230)				$ 12.16
15	2257644		Hinge (top)				$ 169.50
16	W11755873		Bracket, Mount (water Filter)   (Replaces: W10348782)				$ 76.50
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
18	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.96
19	2300082		Bushing				$ 13.44
20	W11805224		Spring, Door Closure   (Replaces: 2221242)		Appelez-nous	-
21	W11624204		Screw   (Replaces: 486194)				$ 14.02
22	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.17
23	W10129069		Wire Clip		Appelez-nous	-
24	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
25	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 130.70
25	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 285.08
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 86.40
27	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)			Immediately	$ 14.08
28	WP2209024B		Skirt-grille, Bottom (black)   (Replaces: 2209024B)				$ 161.78
29	W10847927		Extension Arm, Door Closer (rh)   (Replaces: 2266882)				$ 95.15
29	W11298172		Extension Arm, Door Closer (lh)   (Replaces: 2266881)			Immediately	$ 83.27
30	W11739149		Grille Bottom, Front (black)   (Replaces: 2325184B)			Immediately	$ 199.12
31	W11177574		Screw   (Replaces: W10004850)				$ 14.13
32	2006616		Bracket, Support Base (front) (lh)				$ 87.17
32	2006556		Bracket, Support Base (front) (rh)				$ 35.43
33	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
34	2006617		Bracket, Support Base (rear)		Appelez-nous	-
35	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
36	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 51.62
37	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
38	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.19
39	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 72.78
40	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 38.18
40	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 37.23
41	2215938		Cover, Switch				$ 90.27
42	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
43	W10741111		Bracket, Switch (rh)   (Replaces: 2221097)				$ 64.16
43	2221096		Bracket, Switch (lh)				$ 93.20
44	2215612		Cover, Rear		Appelez-nous	-
45	2005032		Leveler Assy			Immediately	$ 190.54
46	2006841		Ring, Retainer				$ 88.25

    View Diagram in Separate Window       Print Part List
