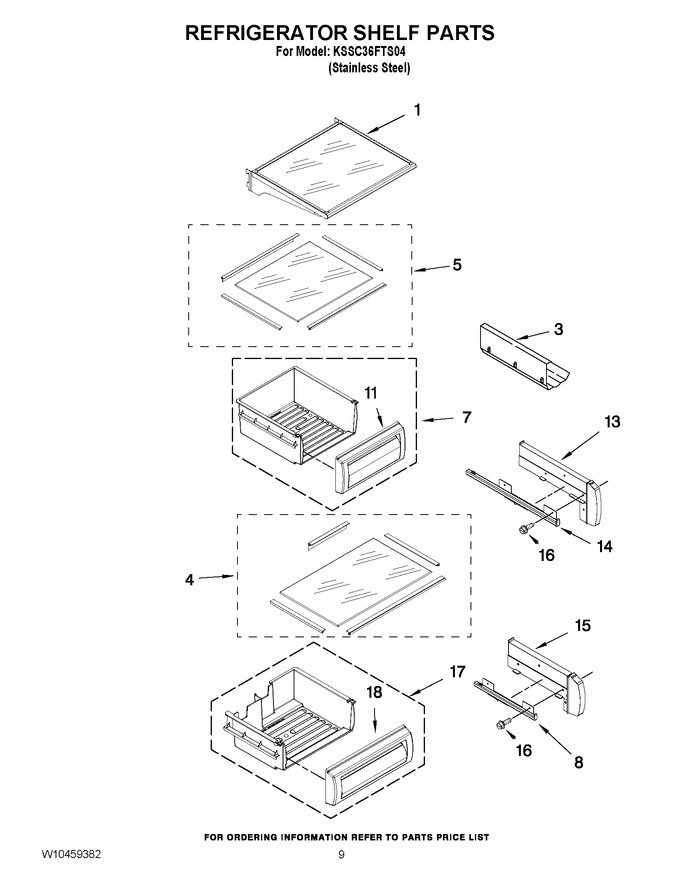

07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222591		Shelf Assembly		Appelez-nous	-
3	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
4	2302841		Meat Pan Cover Assembly		Appelez-nous	-
5	2302834		Crisper Cover Assembly		Appelez-nous	-
7	W10407623		Crisper Pan		Appelez-nous	-
8	2302955		Slide, Meat Pan (right Side)				$ 343.18
8	2302954		Slide, Meat Pan (left Side)				$ 343.49
11	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 133.22
13	2256222		Spacer, Crisper (rh)				$ 89.24
13	2256223		Spacer, Crisper (lh)				$ 84.49
14	2302957		Slide, Crisper (rh)				$ 228.33
14	2302956		Slide, Crisper (lh)				$ 298.73
15	2256244		Spacer, Meat Pan (rh)				$ 103.70
15	2256243		Spacer, Meat Pan (lh)				$ 83.04
16	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
17	W10407626		Pan Assembly Meat		Appelez-nous	-
18	WP2256365		Front, Meat Pan   (Replaces: 2256365)				$ 173.51
