SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts

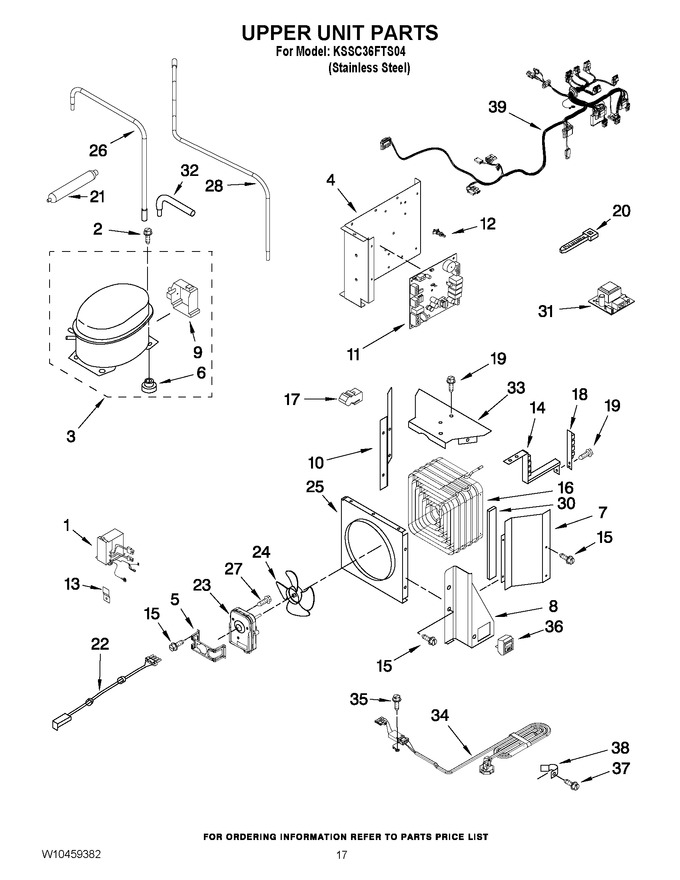

11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: W10133449)			Immediately	$ 422.33
2	876811		Screw, Compressor Mounting   (Replaces: 489373)				$ 7.42
3	8201675		Compressor (includes Items 6 & 9)(also Order 876765 Tube Kit)   (Replaces: 2223801)			Immediately	$ 538.32
4	2318087		Housing, Control Board				$ 72.43
5	W10414681		Bracket, Fan Motor				$ 75.74
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.42
7	W10415668		Support, Condenser (right)		Appelez-nous	-
8	W10185556		Bracket, Switch		Appelez-nous	-
9	2215676		Terminal Cover				$ 89.87
10	W10415666		Support, Condenser (left)		Appelez-nous	-
11	W10219462		Control Board				$ 326.45
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 17.91
13	2256328		Bracket, Inverter Box		Appelez-nous	-
14	2317031		Bracket, Vibration (condenser)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
16	2307998		Condenser				$ 485.76
17	2309431		Grommet				$ 13.55
18	2317030		Arm, Vibration (condenser)		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 6.95
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.90
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	2310207		Wire Assembly (condenser Fan)		Appelez-nous	-
23	W11578915		Motor, Fan   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 95.07
25	W10415670		Orifice, Fan		Appelez-nous	-
26	2307566		Tube, Drier Transition				$ 16.99
27	WP8533993		Screw   (Replaces: W10146359)				$ 10.57
28	2307692		Tube, Heat Loop Transition		Appelez-nous	-
30	2309432		Gasket, Condenser		Appelez-nous	-
31	WP2259350		Power Supply, Ingredient Care Center   (Replaces: 2259350)				$ 138.43
32	W10528578		Process, Tube   (Replaces: 2194319)				$ 37.92
33	2309000		Cover, Condenser		Appelez-nous	-
34	WP2310251		Service Cord   (Replaces: 2310251)				$ 84.70
35	W11624204		Screw   (Replaces: 486194)				$ 14.02
36	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 103.89
37	00487294		Screw, Ground   (Replaces: 487294)				$ 175.09
38	549193		Clamp, Cord				$ 13.39
39	W10279395		Wiring Harness, Unit Compartment		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access (3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (6.25 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
