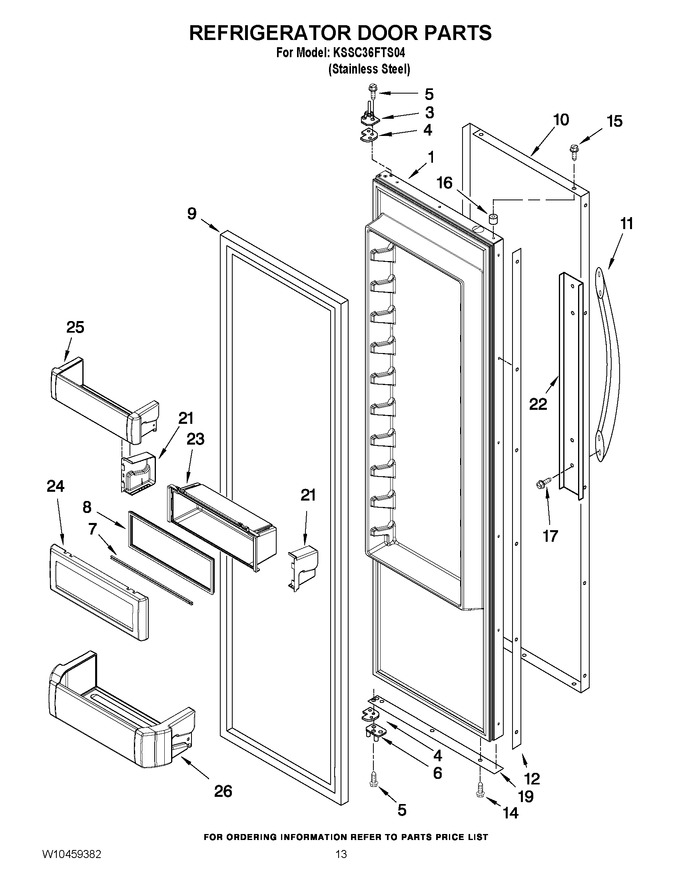

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193489		Refrigerator Door Panel (includes Item No.9)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 297.62
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
6	2302878		Hinge Assembly, Bottom			Immediately	$ 86.68
7	2222795		Rail, Lid				$ 80.10
8	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 204.19
9	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 352.23
10	2307752		Skin, Door		Appelez-nous	-
11	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 268.03
12	2309060		Spacer, Door (handle Side)		Appelez-nous	-
14	W10759522		Screw   (Replaces: 488568)				$ 7.75
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 10.88
16	2005433		Spacer, Door-skin (top)				$ 22.22
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
19	WP2257333		Spacer, Door-skin (bottom)   (Replaces: 2004933)				$ 134.21
21	WPW10323172		End Cap (rh)   (Replaces: W10323172)				$ 8.19
21	WPW10323173		End Cap (lh)   (Replaces: W10323173)				$ 8.19
22	W10127710		Plate, Door-handle			Immediately	$ 24.70
23	WPW10323035		Bin, Utility Center   (Replaces: W10323035)				$ 80.89
24	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 72.20
25	W10323598		Door Shelf				$ 99.80
26	W10323746		Shelf, Gallon Door				$ 103.09
