01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

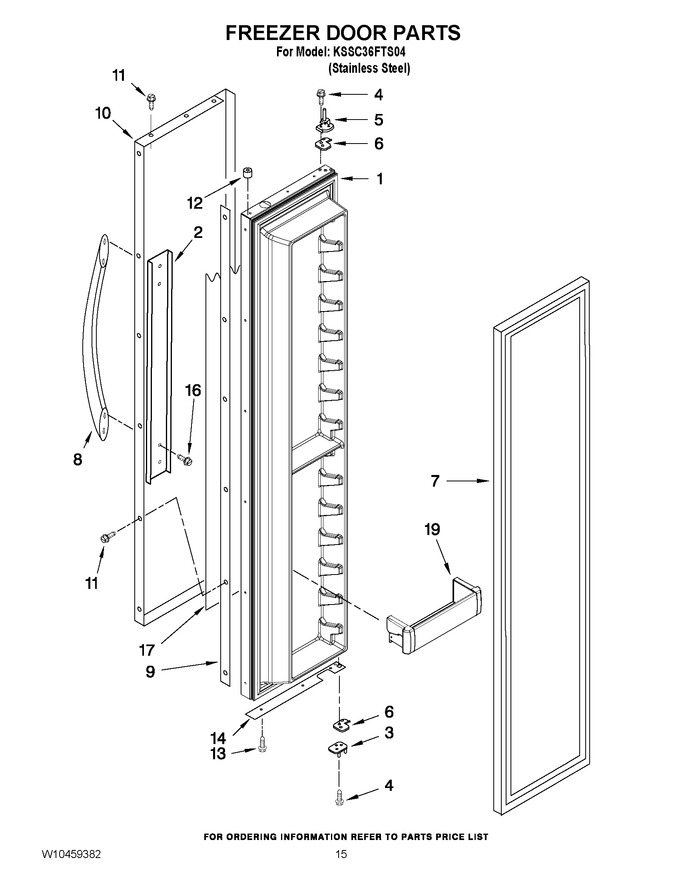

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193485		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	W10127710		Plate, Door-handle			Immediately	$ 25.94
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
8	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 281.43
9	2309056		Spacer, Door-skin (handle Side)		Appelez-nous	-
10	2307755		Skin, Door Screw		Appelez-nous	-
11	WP8281250		Stainless Steel   (Replaces: 8281250)				$ 11.42
12	2005433		Spacer, Door-skin (top)				$ 23.33
13	W10759522		Screw   (Replaces: 488568)				$ 8.24
14	2004931		Spacer, Door Skin Bottom		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
17	2005324		Filler, Door		Appelez-nous	-
19	W10323601		Bin, Door				$ 92.19
