Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10181770 Control Box Appelez-nous -
2 2310164 Wire, Jumper Appelez-nous -
3 2324971 Bracket, Control Box Appelez-nous -
4 2307594 Shield, Light Appelez-nous -
5 WP488729 Screw   (Replaces: 487539) In-Stock Immediately $ 7.79

6 2317000 Clip, Control Box Appelez-nous -
7 WP2306086 Display Board, Ingredient Care Center   (Replaces: 2306086) Special Order $ 317.58

8 WPW10191429 Socket, Light   (Replaces: 2223857) Special Order $ 8.38

9 WPA3073101 Light Bulb   (Replaces: 2326255) In-Stock Immediately $ 12.11

10 WPW10142283 Screw   (Replaces: W10142283) Special Order $ 9.84


    View Diagram in Separate Window     Print Icon   Print Part List

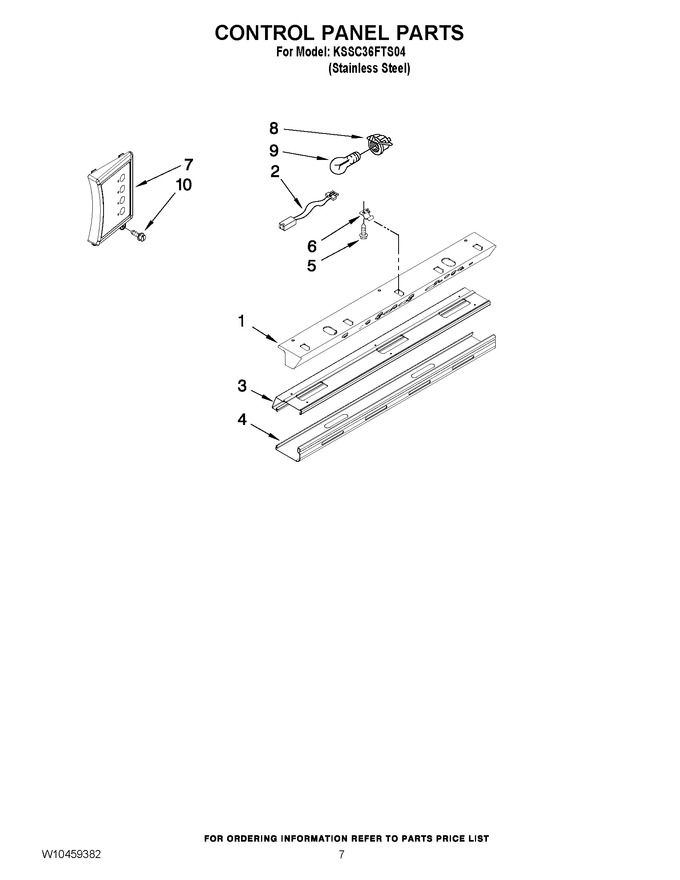

Diagram for KSSC36FTS04
