SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts

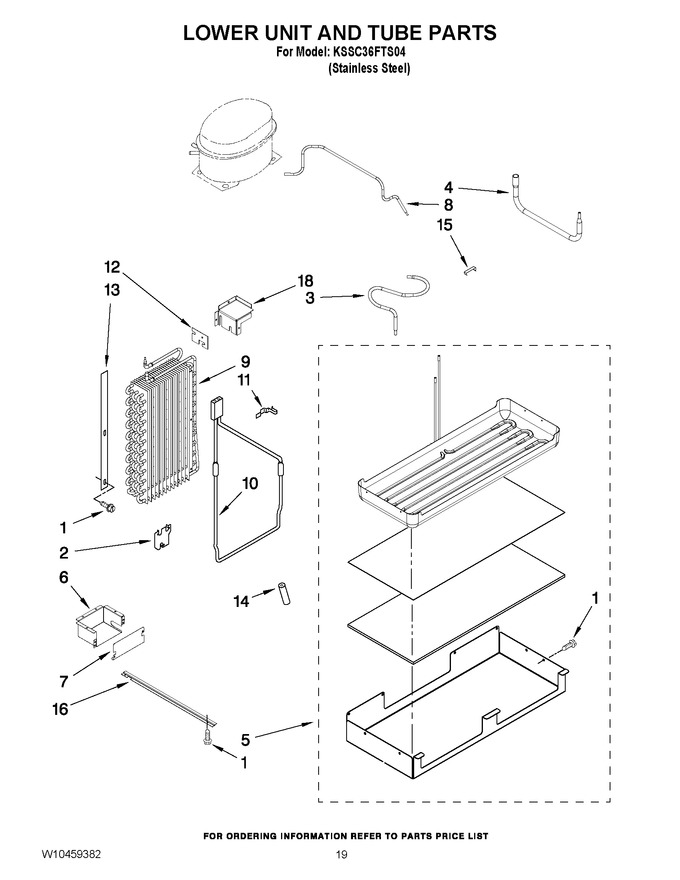

12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 14.02
2	W10157752		Bracket		Appelez-nous	-
3	W10306442		Suction Tube Oil Trap		Appelez-nous	-
4	W10388653		Tube, Connect (drier/restrictor)			Immediately	$ 38.55
5	W11623101		Drain Pan Assembly   (Replaces: W10281063)			Immediately	$ 375.26
6	W10316077		Cover, Wiring		Appelez-nous	-
7	W11756952		Cover, Box   (Replaces: W10321048)		Appelez-nous	-
8	W10412487		Tube, Discharge		Appelez-nous	-
9	W10205100		Evaporator		Appelez-nous	-
10	W10140160		Heater, Defrost		Appelez-nous	-
11	1113048		Clamp, Heater		Appelez-nous	-
12	W10139908		Seal, Return Air				$ 12.44
13	2220832		Gasket, Evaporator		Appelez-nous	-
14	2215648		Dampener				$ 12.58
15	W10169509		Clip, Heat Exchanger		Appelez-nous	-
16	2320554		Support, Drain Pan		Appelez-nous	-
18	W10160981		Bracket Assembly, Return Air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
