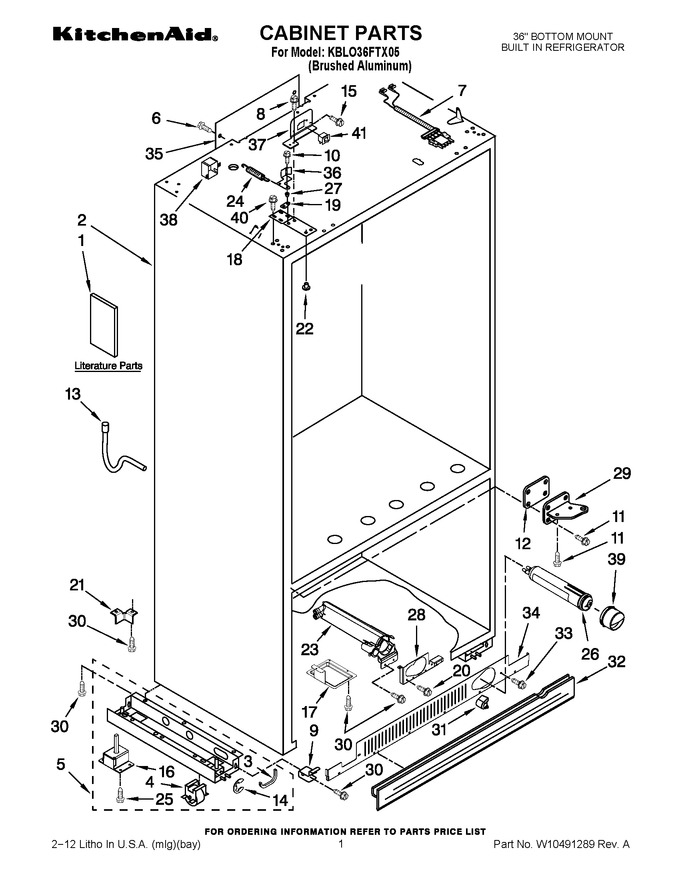

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469186 | Main Control Service Sheet |
|
- | |||||
| 1 | W10205624 | Energy Guide |
|
- | |||||
| 1 | W10445961 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10303987 | Use & Care Guide |
|
- | |||||
| 1 | 2317840 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10379132 | Installation Instructions |
|
- | |||||
| 2 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2307584 | Grommet, Crossover Tube (left Side) |
|
$ 22.29 | |||||
| 4 | WPW10138054 | Roller Assy, Front & Rear (Replaces: W10138054) |
|
$ 43.18 | |||||
| 5 | W10860448 | Support Base Assy (right Side) (Replaces: W10138423) |
|
Immediately | $ 364.76 | ||||
| 5 | W10860229 | Support Base Assy (left Side) (Replaces: W10279275) |
|
$ 363.65 | |||||
| 6 | WP1163283 | Screw 8-15 X 1/2 (Replaces: 1163283) |
|
$ 7.19 | |||||
| 7 | 2187894 | Wire Assembly, Light Switch |
|
- | |||||
| 8 | WP8281164 | Screw 8-32 X 3/8 (Replaces: 8281164) |
|
$ 10.79 | |||||
| 9 | W10839844 | Mounting Bracket, Grill (Replaces: 2307640) |
|
$ 41.20 | |||||
| 10 | W11177574 | Screw 10-32 X .564 (Replaces: W10004850) |
|
$ 14.13 | |||||
| 11 | W11474472 | Screw 10-32 X 5/8 (Replaces: W10162602) |
|
Immediately | $ 8.02 | ||||
| 12 | 2207470 | Hinge Shim, Rc |
|
Immediately | $ 49.78 | ||||
| 13 | 2314064 | Tube, Drain |
|
$ 89.41 | |||||
| 14 | 2006841 | Ring, Retainer |
|
$ 88.25 | |||||
| 15 | WP965173 | Screw 8-18 X 3/8 (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 16 | 2005032 | Leveler Assembly |
|
Immediately | $ 190.54 | ||||
| 17 | 2318189 | Tray, Drip Filter |
|
$ 141.65 | |||||
| 18 | 2252291 | Hinge, Top |
|
$ 75.57 | |||||
| 19 | 2005783 | Cam, Door Closer |
|
$ 26.20 | |||||
| 20 | WP8281163 | Screw 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 21 | 2006617 | Bracket, Support |
|
- | |||||
| 22 | 2300082 | Bushing |
|
$ 13.44 | |||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 24 | W11805224 | Door Closer Spring (Replaces: 2221242) |
|
- | |||||
| 25 | W11624204 | Screw 8-15 X .530 (Replaces: 486194) |
|
$ 14.02 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 27 | WP2316859 | Bushing-arm, Extension (Replaces: 2316859) |
|
Immediately | $ 51.62 | ||||
| 28 | W11755873 | Bracket, Mounting (filter) (Replaces: W10348782) |
|
$ 76.50 | |||||
| 29 | 2252299 | Hinge, Bottom |
|
$ 164.35 | |||||
| 30 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 31 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 72.78 | |||||
| 32 | WP2209024B | Grille Skirt, Bottom (Replaces: 2209024B) |
|
$ 161.78 | |||||
| 33 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10005050) |
|
Immediately | $ 7.83 | ||||
| 34 | WP2325187B | Grille Base, Bottom (Replaces: 2325187B) |
|
$ 180.14 | |||||
| 35 | W10426957 | Cover, Air Duct |
|
- | |||||
| 36 | W11416733 | Arm, Extension (Replaces: 2267193) |
|
$ 76.59 | |||||
| 37 | 2221096 | Bracket, Switch |
|
$ 93.20 | |||||
| 38 | 2215938 | Cover, Switch |
|
$ 90.27 | |||||
| 39 | WP2260518B | Cap, Water Filter (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 40 | W11721628 | Screw 1/4-20 X 5/8 (Replaces: 8533913) |
|
Immediately | $ 14.08 | ||||
| 41 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 |
