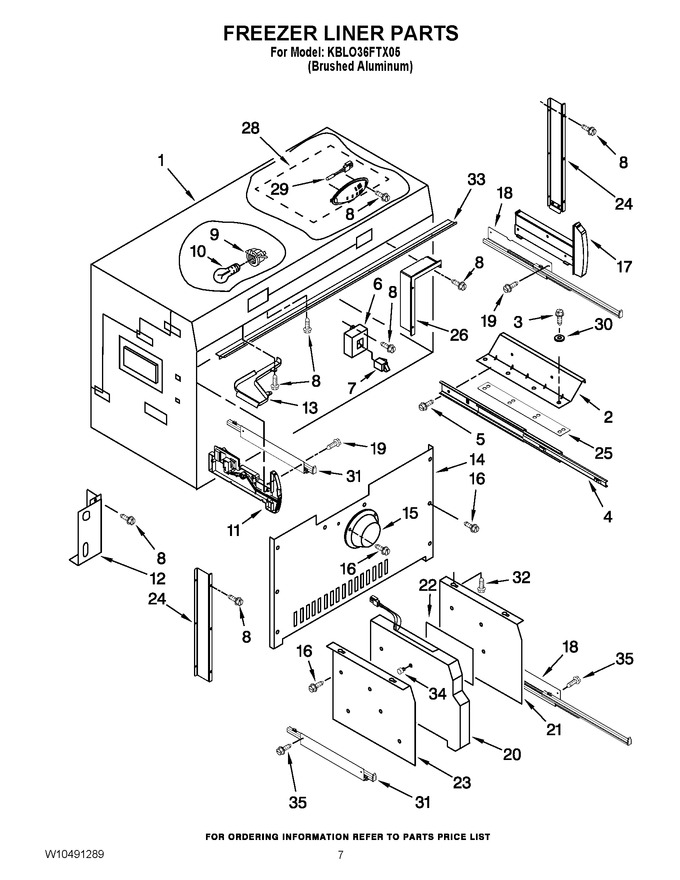

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner, Freezer (not Serviced) |
|
- | |||||
| 2 | W10744329 | Mounting Bracket, Drawer Slide (Replaces: W10423553) |
|
$ 359.78 | |||||
| 3 | WP8204624 | Screw 1/4-20 X 3/4 (Replaces: W10071460) |
|
$ 17.48 | |||||
| 4 | W11650036 | Drawer Slide, Freezer Basket (Replaces: W10423551) |
|
Immediately | $ 363.66 | ||||
| 5 | W10061370 | Screw 10-32 X 1/2 |
|
$ 8.19 | |||||
| 6 | W10234211 | Light Switch Cover |
|
- | |||||
| 7 | W11384469 | Light Switch (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 8 | W11624204 | Screw 8-15 X .530 (Replaces: 486194) |
|
$ 14.72 | |||||
| 9 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 10 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 11 | W10321131 | Spacer Assembly, Icemaker (includes Emitter) |
|
$ 151.80 | |||||
| 12 | 2306187 | Cover, Wiring (icemaker) |
|
- | |||||
| 13 | 2317006 | Duct, Air Flow (icemaker) |
|
- | |||||
| 14 | 2268380 | Cover, Evaporator |
|
$ 90.03 | |||||
| 15 | 2317829 | Cover, Assembly Evaporator Fan |
|
- | |||||
| 16 | WP488729 | Screw 8-15 X 1/2 (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 17 | 2306106 | Spacer, Drawer (right Side) |
|
$ 19.65 | |||||
| 18 | 2306116 | Slide, Freezer Bin (right) |
|
$ 308.95 | |||||
| 19 | WP488163 | Screw 8-15 X 1.000 (Replaces: 488163) |
|
$ 7.92 | |||||
| 20 | W10290822 | Divider, Freezer Bins (includes Item 34) |
|
$ 269.04 | |||||
| 21 | W10716209 | Support, Slide (right) (Replaces: 2306104) |
|
$ 57.70 | |||||
| 22 | 2317927 | Shield |
|
- | |||||
| 23 | 2306105 | Support, Slide (left) |
|
$ 117.96 | |||||
| 24 | 2327339 | Evap Cover Bracket (right Side) |
|
- | |||||
| 24 | 2320512 | Evap Cover Bracket (left Side) |
|
- | |||||
| 25 | W10123657 | Slide Bracket Shim |
|
$ 19.47 | |||||
| 26 | W10121940 | Air Return Bracket |
|
- | |||||
| 28 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 11.38 | |||||
| 29 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 30 | W10075920 | Washer |
|
$ 7.63 | |||||
| 31 | 2306117 | Slide, Freezer Bin (left) |
|
$ 278.67 | |||||
| 32 | WP8533928 | Screw, 8-18 X 3/4 (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 33 | W10135431 | Air Deflector Assy |
|
- | |||||
| 34 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 8.59 | |||||
| 35 | WPW10001160 | Screw, 8-32 X 1/2 (Replaces: W10001160) |
|
$ 10.33 |
