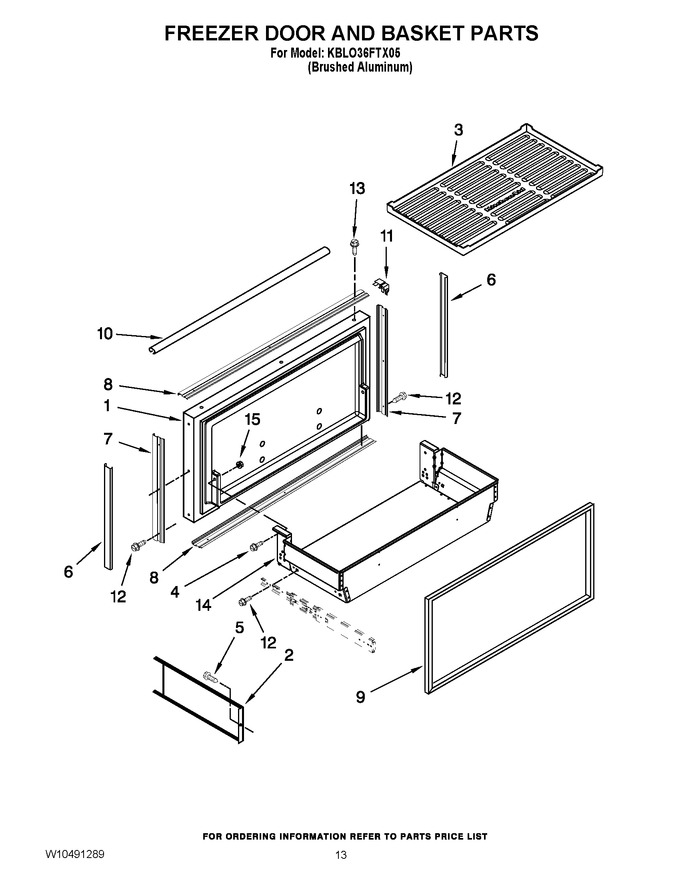

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10258746 | Freezer Door (includes Item 9) |
|
- | |||||
| 2 | 2317101 | Divider, Basket |
|
- | |||||
| 3 | 2314025 | Mat, Basket |
|
- | |||||
| 4 | W10135775 | Screw, 5/16 X 3/4 |
|
$ 14.22 | |||||
| 5 | WP488234 | Screw, 8/32 X 1/4 (Replaces: W10135792) |
|
$ 6.74 | |||||
| 6 | 2006324 | Cover, Trim (side) |
|
$ 28.78 | |||||
| 7 | 2309477 | Trim, Door (side) |
|
$ 210.05 | |||||
| 8 | 2309478 | Trim, Door (top & Bottom) |
|
$ 178.29 | |||||
| 9 | W11624996 | Door Gasket, Magnetic (Replaces: W10144009) |
|
Immediately | $ 232.11 | ||||
| 10 | 2006329 | Cover, Trim (top) |
|
$ 91.40 | |||||
| 11 | 2207457 | Trim, Corner |
|
$ 54.40 | |||||
| 12 | W10109030 | Screw, 10-24 X 1/4(basket To Slide) |
|
$ 14.62 | |||||
| 13 | WP8281250 | Screw 8-15 X 1/2 (Replaces: 8281250) |
|
$ 10.88 | |||||
| 14 | W10258182 | Basket Assembly, Freezer |
|
$ 242.29 | |||||
| 15 | WP2207454 | Nut, Hex (Replaces: 2207454) |
|
$ 10.64 |
