SELECT A DIAGRAM

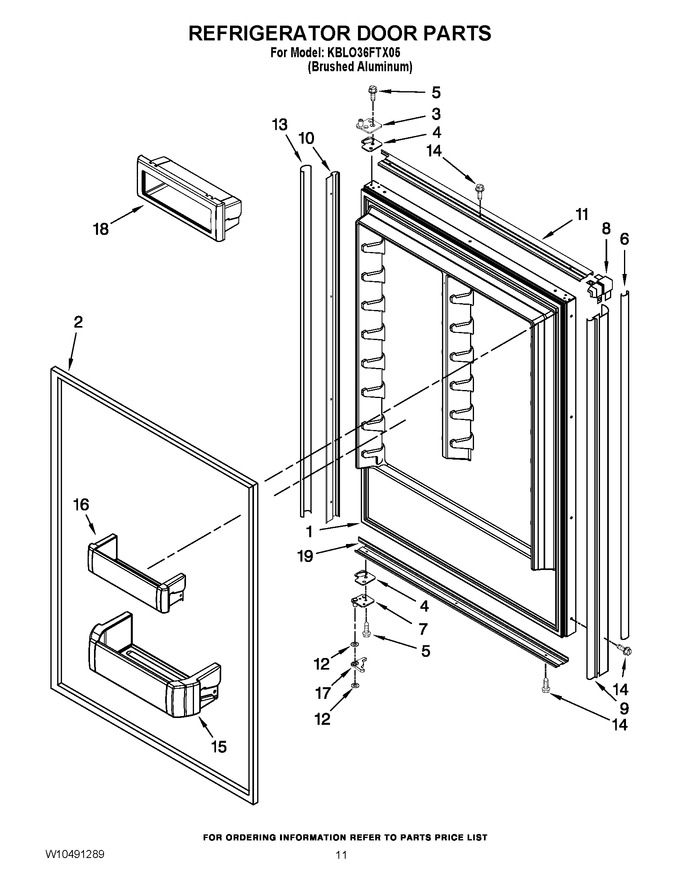

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192039 | Door, Refrigerator (includes Item 2) |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 312.67 | |||||
| 3 | 2256384 | Hinge Assy, Top |
|
$ 69.79 | |||||
| 4 | W11673500 | Spacer-hinge (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw 10-32 X 3/4 (Replaces: W10162602) |
|
Immediately | $ 8.02 | ||||
| 6 | 2266942S | Cover, Trim (hinge Side) |
|
$ 97.89 | |||||
| 7 | 2256281 | Hinge Assy, Bottom |
|
$ 81.90 | |||||
| 8 | 2207457 | Trim, Corner |
|
$ 54.40 | |||||
| 9 | 2309476 | Door Trim (hinge Side) |
|
- | |||||
| 10 | 2309475 | Door Trim (handle Side) |
|
$ 305.29 | |||||
| 11 | 2309473 | Door Trim, Top |
|
$ 275.13 | |||||
| 12 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.20 | ||||
| 13 | 2209084S | Cover, Trim (handle Side) |
|
$ 130.22 | |||||
| 14 | WP8281250 | Screw 8-15 X 1/2 (Replaces: 8281250) |
|
$ 10.88 | |||||
| 15 | W10323749 | Shelf, Door (gallon) |
|
$ 130.32 | |||||
| 16 | W11590561 | Shelf, Door (Replaces: W10323603) |
|
$ 89.74 | |||||
| 17 | W10188434 | Gap Cover, Bottom |
|
$ 64.71 | |||||
| 18 | W10323044 | Utility Bin Assy |
|
$ 126.27 | |||||
| 19 | 2309474 | Door Trim, Bottom |
|
$ 247.85 |
