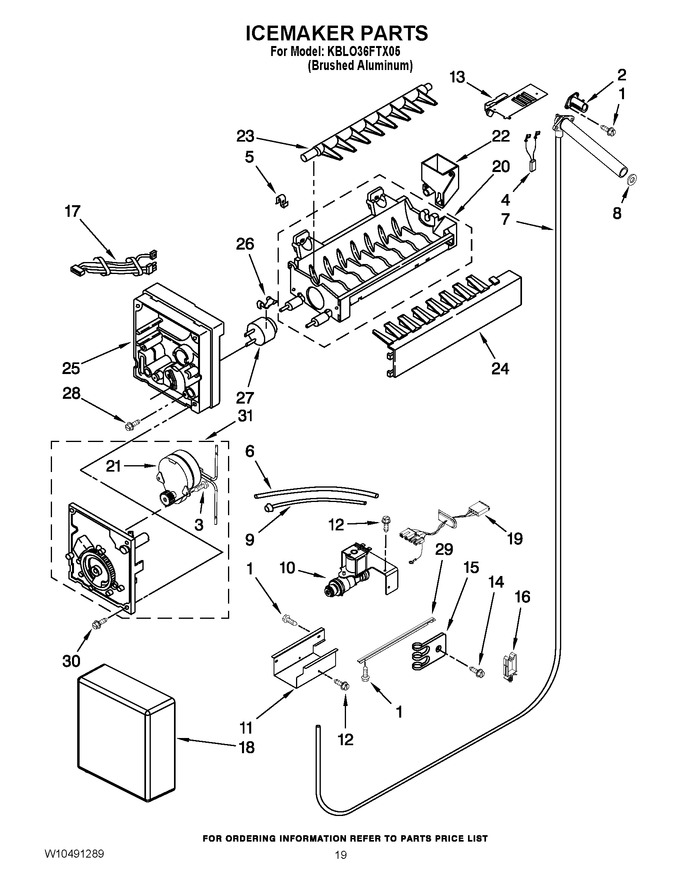

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw 8-15 X .530 (Replaces: 486194) |
|
$ 14.72 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 206.58 | |||||
| 3 | 489136 | Screw 3-24 X .360 |
|
$ 10.80 | |||||
| 4 | 2310108 | Jumper, Heater Fill Tube |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 67.89 | |||||
| 7 | 2317847 | Tube Assembly, Water Inlet |
|
$ 86.35 | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 33.15 | ||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 203.52 | ||||
| 11 | W10129653 | Shield, Valve |
|
- | |||||
| 12 | 00487294 | Screw 8-32 X 3/8 (Replaces: 487294) |
|
$ 175.09 | |||||
| 13 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 89.33 | |||||
| 14 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 15 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 16 | W10129069 | Clip, Tube |
|
- | |||||
| 17 | 2310136 | Wire Harness, Icemaker |
|
$ 178.69 | |||||
| 18 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 19 | W10279393 | Wire Assembly (water Valve) |
|
$ 157.07 | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 21 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 141.64 | ||||
| 22 | W10122561 | Cup, Water Fill |
|
$ 29.16 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw 10-32 X .830 |
|
$ 14.04 | |||||
| 29 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 30 | WP681249 | Screw 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | 8201515 | Module Assembly (includes 3 & 21) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: 2316895) |
|
Immediately | $ 281.45 | ||||
| NI | 8537055 | Cleaner, Stainless Steel |
|
- | |||||
| NI | W10129081 | Handle Kit For Previous Architect Series (stainless) |
|
$ 254.74 |
