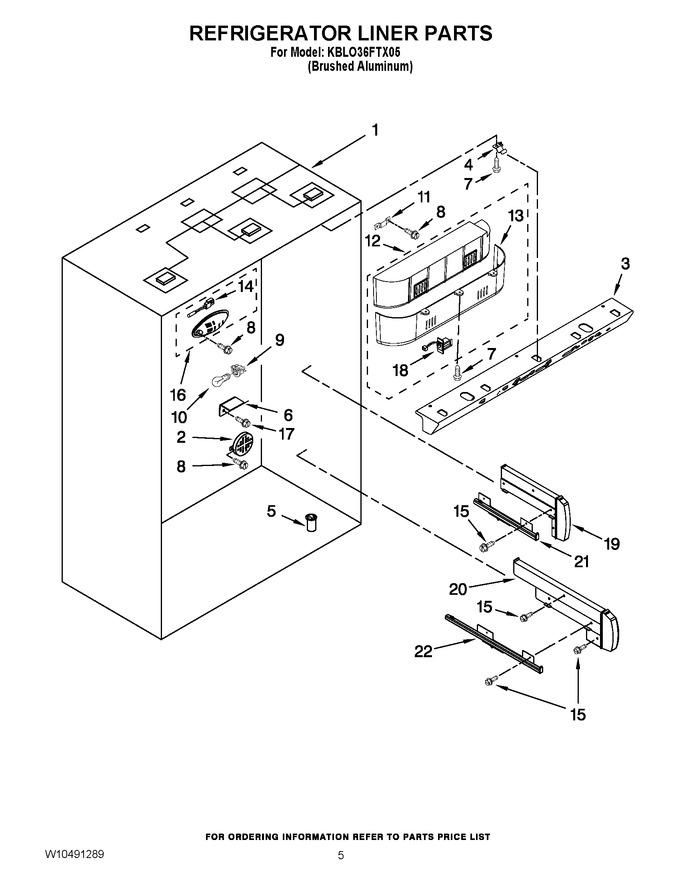

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner, Refrigerator (not Serviced)		Appelez-nous	-
2	2317004		Cover, Air Return		Appelez-nous	-
3	W10468945		Control Box			Immediately	$ 1,299.94
4	2317000		Clip, Control Box		Appelez-nous	-
5	WP2210509		Valve, Tube Body   (Replaces: 2171931)				$ 94.43
6	2302788		Support, Crisper Cover		Appelez-nous	-
7	WP8281163		Screw 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.19
8	WP488729		Screw 8-15 X 1/2   (Replaces: 487539)			Immediately	$ 7.79
9	WPW10191429		Socket, Light   (Replaces: W10191429)				$ 8.38
10	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.11
11	2317917		Clip, Diffuser Cover		Appelez-nous	-
12	2320523		Diffuser Assembly				$ 100.60
13	2320519		Cover, Diffuser				$ 112.02
14	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
15	W11830745		Screw 8-18 X 1-3/8   (Replaces: 8533929)		Appelez-nous	-
16	WP2317844		Thermistor Assy   (Replaces: 2317844)				$ 10.84
17	WP8533928		Screw, 8-18 X 3/4   (Replaces: 8533928)			Immediately	$ 7.82
18	WP2221296		Air Baffle Assy   (Replaces: 2221296)			Immediately	$ 392.93
19	2309410		Spacer, Crisper (right)		Appelez-nous	-
19	2309411		Spacer, Crisper (left)		Appelez-nous	-
20	2268411		Spacer, Deli (left)		Appelez-nous	-
20	2268412		Spacer, Deli (right)		Appelez-nous	-
21	2302952		Slide, Crisper Pan (left)			Immediately	$ 302.94
21	2302953		Slide, Crisper Pan (right)			Immediately	$ 303.25
22	2302957		Slide, Deli Pan (right)				$ 217.46
22	2302956		Slide, Deli Pan (left)				$ 284.50

    View Diagram in Separate Window       Print Part List
