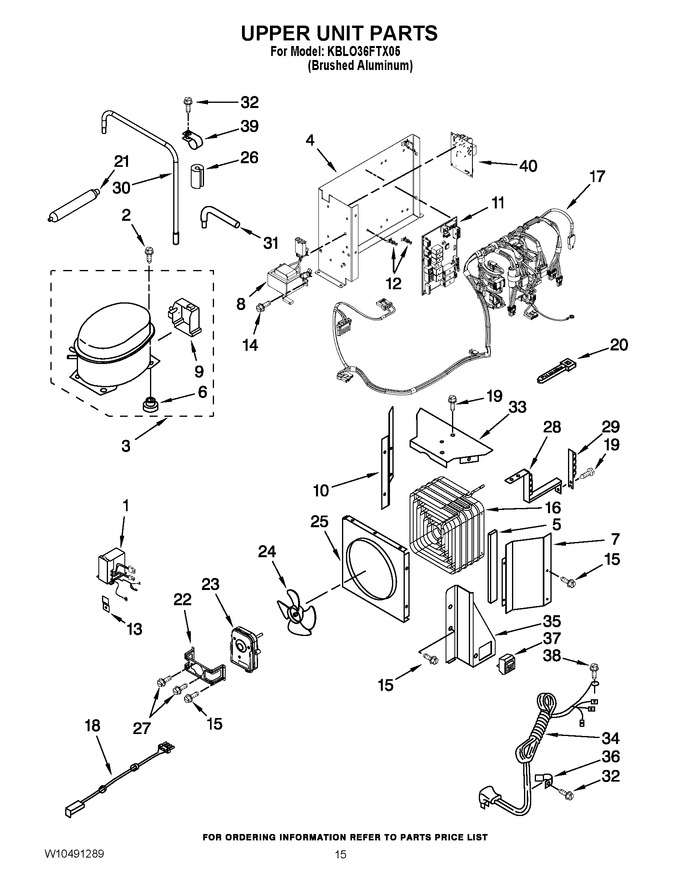

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: W10133449)			Immediately	$ 443.45
2	876811		Screw 1/4-28 X .90   (Replaces: 489373)				$ 7.79
3	8201675		Compressor (includes Items 6 & 9)(also Order 876765 Tube Kit)   (Replaces: 2223801)			Immediately	$ 538.32
4	WPW10321056		Housing, Control Board   (Replaces: W10321056)				$ 126.60
5	2309432		Gasket, Condenser		Appelez-nous	-
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.79
7	W10415668		Support, Condenser (right)		Appelez-nous	-
8	2303033		Transformer				$ 168.74
9	2215676		Terminal Cover				$ 94.36
10	W10415666		Support, Condenser (left)		Appelez-nous	-
11	WPW10427079		Electronic Control   (Replaces: W10427079)				$ 421.25
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Box		Appelez-nous	-
14	WP965173		Screw 8-18 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
15	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
16	2307998		Condenser				$ 510.05
17	W10427099		Wire Assy, Unit		Appelez-nous	-
18	2310207		Wire Assembly (condenser Fan)		Appelez-nous	-
19	WP489399		Screw 8-32 X .312   (Replaces: 489399)				$ 7.30
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	W10414681		Bracket, Fan Motor				$ 79.53
23	W11578915		Motor, Fan   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
25	W10415670		Orifice, Fan		Appelez-nous	-
26	W10852725		Grommet   (Replaces: 2319835)				$ 8.09
27	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 11.21
28	2317031		Bracket, Vibration Condenser		Appelez-nous	-
29	2317030		Arm, Vibration Condenser		Appelez-nous	-
30	2307566		Tube, Transition (condenser/drier)				$ 17.84
31	W10528578		Tube, Process   (Replaces: 2194319)				$ 39.82
32	W11624204		Screw 8-15 X .530   (Replaces: 486194)				$ 14.72
33	2309000		Cover, Condenser		Appelez-nous	-
34	WP2310251		Service Cord   (Replaces: 2310251)				$ 88.94
35	W10321055		Bracket, Mounting (power Switch)		Appelez-nous	-
36	549193		Clamp, Cord				$ 14.06
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
38	00487294		Screw 8-32 X 3/8   (Replaces: 487294)				$ 175.09
39	W10331955		Clamp, Tube		Appelez-nous	-
40	WPW10356039		Electronic Control   (Replaces: W10120821)			Immediately	$ 377.04
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 5.50 Oz. (r-134a)		Appelez-nous	-
