SELECT A DIAGRAM
New Model Search:

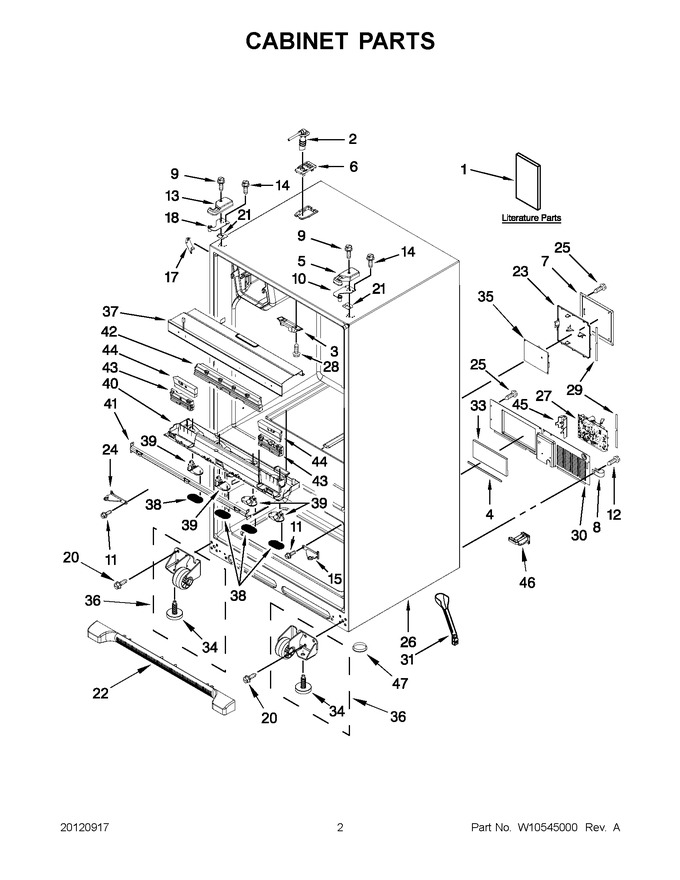

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10422734 | Use & Care Guide |
|
- | |||||
| 1 | W10438984 | Guide, Energy |
|
- | |||||
| 1 | W10525816 | Tech Sheet |
|
- | |||||
| 2 | W11415785 | Tube, Water (Replaces: 12961401) |
|
Immediately | $ 62.39 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | WPW10191117 | Cover, Top Hinge (right) (grey) (Replaces: 12962302AP) |
|
$ 23.05 | |||||
| 6 | W10191141 | Cover, Fill Tube (grey) (Replaces: 12981401AP) |
|
$ 15.06 | |||||
| 7 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 8 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592374 | Hinge, Top Right Hand (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 11 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10337648 | Cover, Top Hinge (left) (grey) (Replaces: 12962301AP) |
|
$ 23.12 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10917988 | Hinge, Right Hand Center (grey) (Replaces: 13000002AP) |
|
Immediately | $ 95.63 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | W11592375 | Hinge, Top Left Hand (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 21 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 23 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 85.16 | |||||
| 24 | W10917988 | Hinge, Left Hand Center (grey) (Replaces: 13000001AP) |
|
Immediately | $ 95.63 | ||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 26 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 27 | WPW10226427 | Control, Electronic (Replaces: W10226427) |
|
Immediately | $ 351.93 | ||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | 12957801 | Gasket, Hv Control Box |
|
- | |||||
| 30 | W10211854 | Cover, Unit |
|
$ 178.37 | |||||
| 31 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 42.39 | ||||
| 33 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | W11035835 | Board, Hv Control (Replaces: W10467104) |
|
Immediately | $ 502.57 | ||||
| 36 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 36 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 37 | W10525773 | Assembly, Secondary Mullion (grey) |
|
- | |||||
| 38 | W10237349 | Lens, Icebox Cover Led |
|
- | |||||
| 39 | W10679370 | Module, Led Light (Replaces: W10320778) |
|
$ 142.75 | |||||
| 40 | W10311719 | Housing-module |
|
- | |||||
| 41 | W10492234 | Brace, Mullion |
|
- | |||||
| 42 | W10311721 | Mullion, Secondary |
|
- | |||||
| 43 | W10316401 | Wedge, Spacer Left Hand & Right Hand |
|
- | |||||
| 44 | W11697528 | Wedge, Spacer Left Hand & Right Hand (Replaces: W10316403) |
|
- | |||||
| 45 | W10208592 | Cover, Valve |
|
- | |||||
| 46 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 47 | A3076901 | Plug, Button |
|
$ 5.70 |
