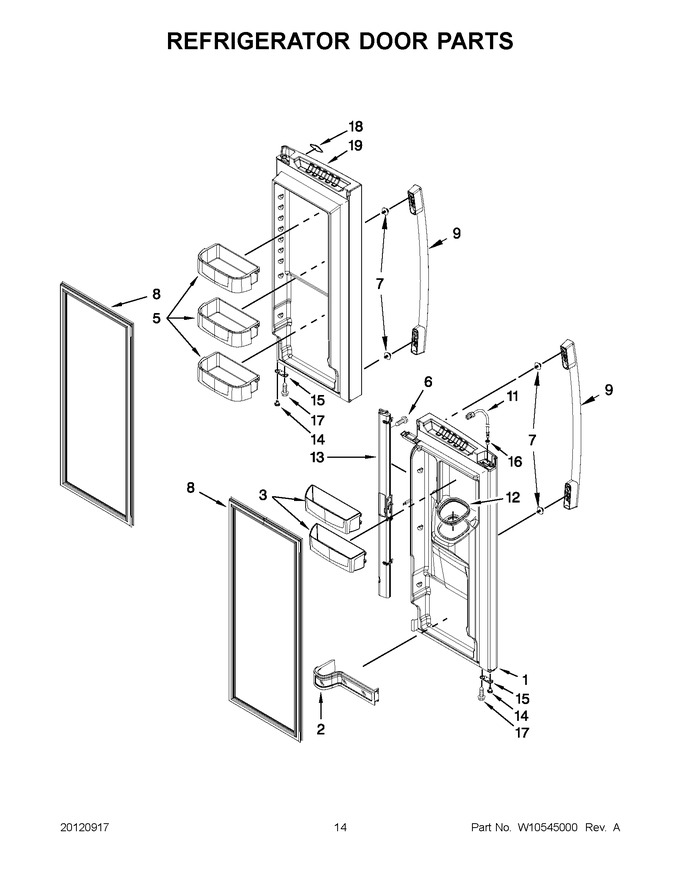

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107318S | Door, Left (stainless) |
|
- | |||||
| 2 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 77.62 | ||||
| 3 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 78.54 | ||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 90.55 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 7 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 8 | W10830274 | Gasket, Door (grey) (Replaces: W10443273) |
|
Immediately | $ 205.74 | ||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019K) |
|
$ 188.78 | |||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 116.13 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 31.20 | ||||
| 13 | WPW10311757 | Mullion, Door (grey) (Replaces: W10311757) |
|
$ 134.42 | |||||
| 14 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 14.72 | |||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 17 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 18 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 19 | 13107319SQ | Door, Right (stainless) (Replaces: 13107319S) |
|
$ 1,042.16 |
