01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts

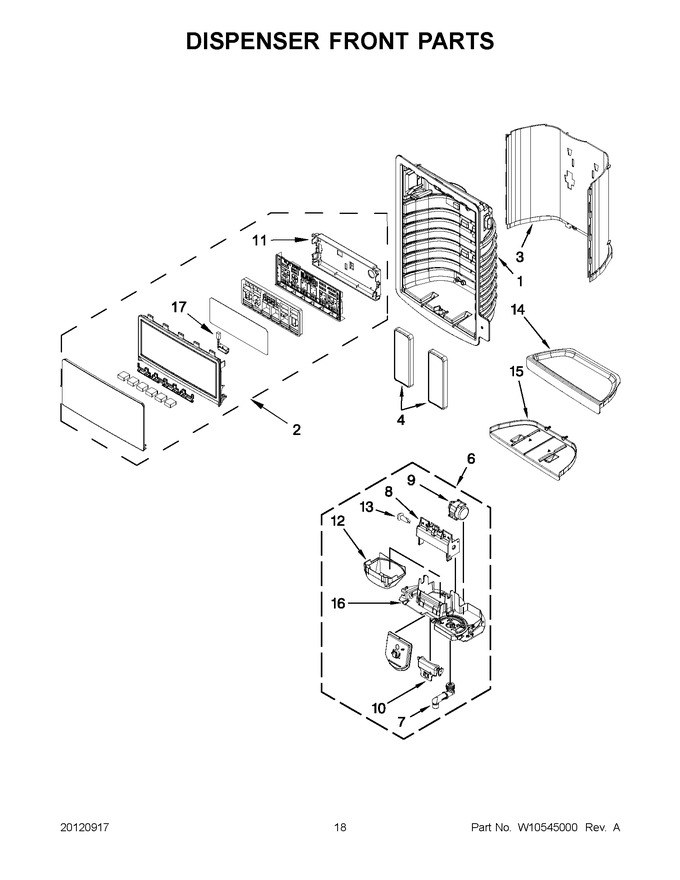

09 - Dispenser Front Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10521642		Assembly, Ui (stainless)   (Replaces: W10521642)				$ 395.42
3	W11045978		Dispenser, False Wall (grey)   (Replaces: W10299897)				$ 86.03
4	WPW10353848		Assembly, Pad (includes Blue Light) (grey)   (Replaces: W10353848)				$ 306.25
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 129.89
8	W10174827		Bracket, Ice Door				$ 72.78
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 39.86
11	W10254277		Cover, Board		Appelez-nous	-
12	WPW10435760		Guide-ice   (Replaces: W10339578)				$ 22.80
13	W10174818		Clip Motor Coupling		Appelez-nous	-
14	W11192301		Dispenser, Tray (stainless)   (Replaces: W10299895)				$ 62.69
15	WPW10267863		Dispenser, Tray Slide (grey)   (Replaces: W10267863)				$ 69.73
16	W10278987		Separator		Appelez-nous	-
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 80.43

    View Diagram in Separate Window       Print Part List
