SELECT A DIAGRAM
New Model Search:

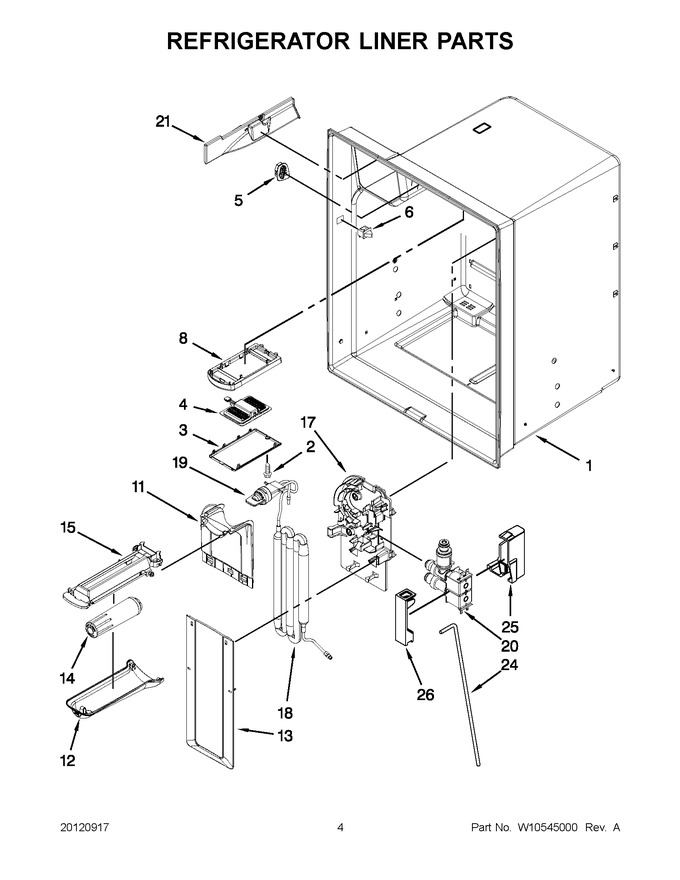

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 3 | W10311756 | Lens-rc-led |
|
$ 150.81 | |||||
| 4 | W11125428 | Module, Main Led (Replaces: W10289592) |
|
$ 504.60 | |||||
| 5 | W10555984 | Grille, Air (Replaces: W10396902) |
|
Immediately | $ 40.09 | ||||
| 6 | W11396033 | Switch, Rocker (Replaces: 12466103) |
|
Immediately | $ 37.30 | ||||
| 8 | W11684721 | Housing-rc-led (Replaces: W10343359) |
|
$ 89.37 | |||||
| 11 | 12960101 | Cover, Upper Water Tank |
|
$ 127.63 | |||||
| 12 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 112.73 | ||||
| 13 | 67006329 | Cover, Lower Water Tank (Replaces: 12960001) |
|
$ 189.48 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: UKF8001) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 100.37 | ||||
| 17 | WPW10334463 | Bracket, Water Tank & Valve (Replaces: W10334463) |
|
$ 59.70 | |||||
| 18 | W11346622 | Assembly, Water Tank & Head (Replaces: W10418477) |
|
Immediately | $ 146.52 | ||||
| 19 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 20 | WPW10349187 | Valve, Water Inlet (Replaces: W10349187) |
|
Immediately | $ 204.56 | ||||
| 21 | WPW10309869 | Cover, Wiring (Replaces: W10309869) |
|
$ 109.19 | |||||
| 24 | WPW10444033 | Tube, Water (Replaces: W10444033) |
|
$ 124.18 | |||||
| 25 | W10118193 | Enclosure, Water Valve Connector |
|
$ 84.57 | |||||
| 26 | W10118194 | Lid, Enclosure |
|
- |
