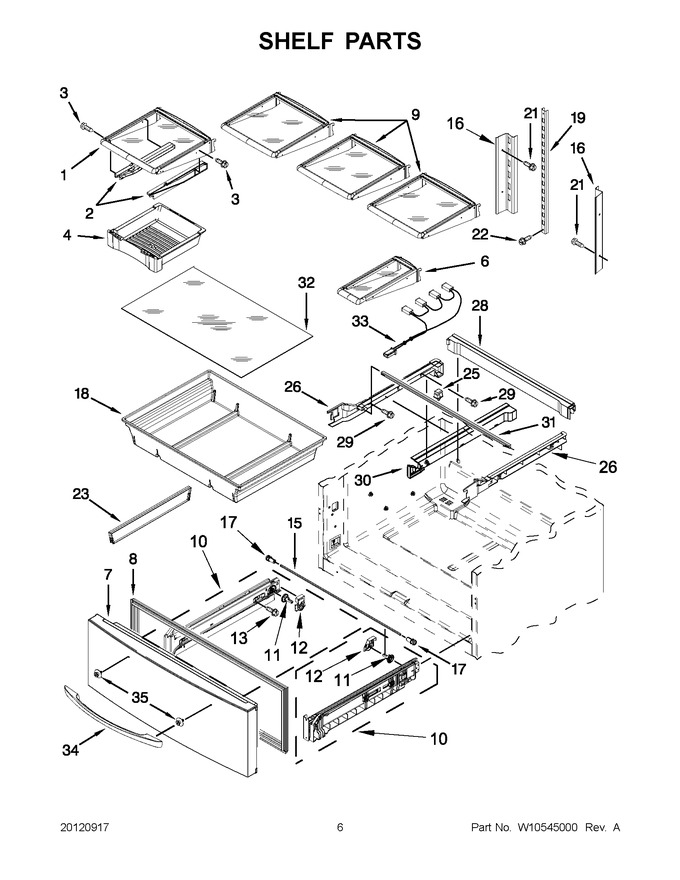

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12883508SP		Shelf, Glass   (Replaces: 12883508SP)				$ 305.36
2	WPW10194032		Glide, Snack Pan Right Hand   (Replaces: W10194032)				$ 121.61
2	WPW10194031		Glide, Snack Pan Left Hand   (Replaces: W10194031)				$ 125.17
3	W11233072		Screw   (Replaces: 12990302SP)			Immediately	$ 14.02
4	WPW10319333		Pan-snack   (Replaces: W10319333)				$ 138.06
6	W11197490		Shelf, Mini (stationary)   (Replaces: 12885501)				$ 230.52
7	13107112SQ		Door, Pantry (stainless)   (Replaces: 13107112S)				$ 967.96
8	WPW10443326		Gasket, Pantry (grey)   (Replaces: W10443326)				$ 331.11
9	W11402525		Shelf, Glide Out   (Replaces: 12883507)				$ 223.28
10	W11093713		Adapter, Pantry (left Hand)   (Replaces: W10495308)				$ 134.70
10	W11093714		Adapter, Pantry (right Hand)   (Replaces: W10495309)				$ 131.73
11	W10277360		Gear, Spur				$ 30.33
12	W10294414		Cover, Gear (right Handd)				$ 79.50
12	W10284709		Cover, Gear (left Hand)				$ 70.37
13	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 10.82
15	W10298176		Shaft-rack		Appelez-nous	-
16	W10251968		Ladder, Side (left Hand)				$ 26.08
16	W10251965		Ladder, Side (right Hand)				$ 29.60
17	WPW10277361		Collar-gear   (Replaces: W10277361)				$ 11.51
18	WPW10530656		Pan, Pantry   (Replaces: W10268846)				$ 229.41
19	W10273464		Ladder, Center			Immediately	$ 28.75
21	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
22	WP67006415		Screw   (Replaces: 12990512)				$ 7.80
23	W10285573		Divider, Pantry		Appelez-nous	-
25	W11291138		Switch-rocker   (Replaces: 12466104)			Immediately	$ 36.67
26	W11715934		Rail, Pantry (right Hand)   (Replaces: W10311726)				$ 43.64
26	W10311723		Rail, Pantry (left Hand)				$ 135.27
28	W10311727		Rail-rear Pantry		Appelez-nous	-
29	WP98165		Screw   (Replaces: 12990521)				$ 8.00
30	W10311725		Cover, Pantry Rail (left Hand)				$ 17.37
31	12227305		Brace-pantry		Appelez-nous	-
32	WPW10296571		Glass-pantry Shelf   (Replaces: W10296571)				$ 235.33
33	W10335721		Harness-rc-led		Appelez-nous	-
34	W10223025K		Handle, Snack Pan (stainless)				$ 85.40
35	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 8.69
