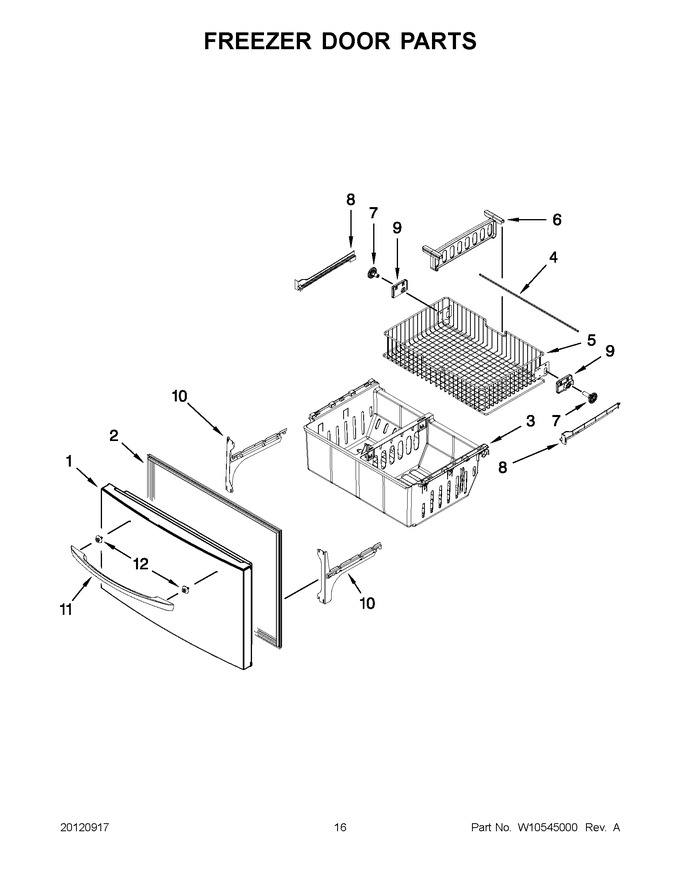

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111SQ		Door, Freezer (stainless)   (Replaces: 13107111S)				$ 1,104.61
2	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 323.60
3	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
4	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
5	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
6	W10146439		Divider, Upper Basket				$ 32.66
7	WPW10474715		Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
7	WPW10474716		Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
8	W11489993		Rack, Side (left Hand)   (Replaces: W10516603)				$ 23.46
8	W11489994		Rack, Side (right Hand)   (Replaces: W10516602)				$ 23.46
9	W10348260		Mount, Gear (right Hand)				$ 89.90
9	W10348259		Mount, Gear (left Hand)				$ 89.87
10	WPW10330991		Bracket, Door Slide (left Hand)   (Replaces: W10330991)				$ 164.31
10	WPW10330993		Bracket, Door Slide (right Hand)   (Replaces: W10330993)				$ 166.09
11	W10223025K		Handle, Door (stainless)				$ 85.40
12	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65

    View Diagram in Separate Window       Print Part List
