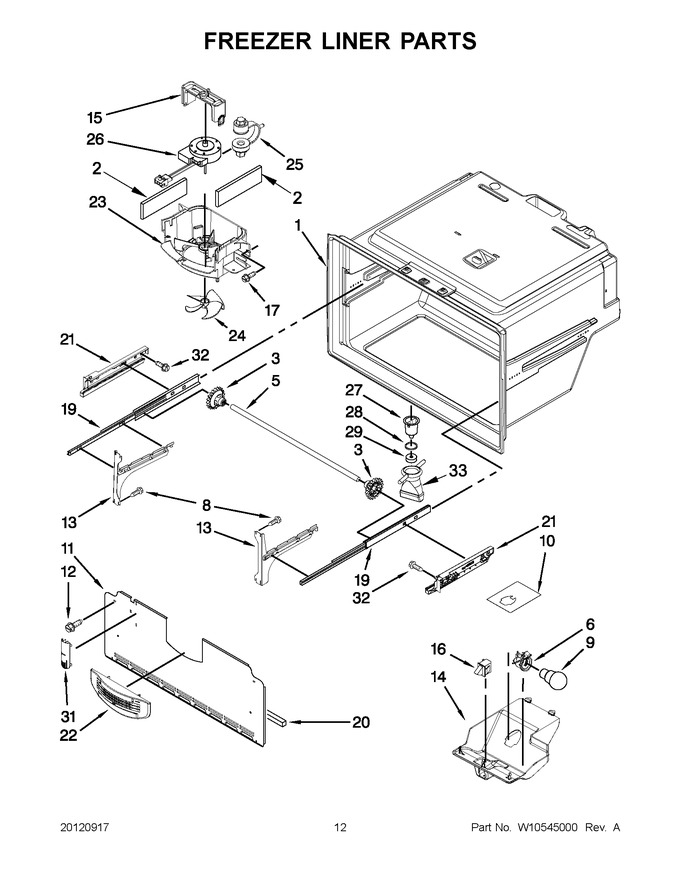

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 12.41 | |||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 5 | 12812903WDSHAFT, | Shaft, Rack |
|
- | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.21 | ||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 9 | 4396822 | Bulb-light (Replaces: W10311527) |
|
Immediately | $ 12.93 | ||||
| 10 | W11469652 | Housing, Foil (Replaces: W10277466) |
|
$ 22.18 | |||||
| 11 | W10308421 | Cover, Evaporator |
|
$ 277.20 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10330991) |
|
$ 156.49 | |||||
| 13 | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10330993) |
|
$ 158.18 | |||||
| 14 | W11434460 | Module, Light (Replaces: W10315248) |
|
Immediately | $ 35.49 | ||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 11.66 | ||||
| 16 | W11445850 | Switch, Light (Replaces: 12466111SP) |
|
Immediately | $ 50.11 | ||||
| 17 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10488000) |
|
Immediately | $ 127.51 | ||||
| 20 | W11159728 | Gasket (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | WPW10284683 | Adapter, Side (right Hand) (Replaces: W10284683) |
|
$ 207.60 | |||||
| 21 | WPW10284682 | Adapter, Side (left Hand) (Replaces: W10284682) |
|
Immediately | $ 134.65 | ||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 118.25 | |||||
| 23 | W11700329 | Shroud, Evaporator (Replaces: 12951401) |
|
Immediately | $ 58.29 | ||||
| 24 | WP67006337 | Blade, Fan (Replaces: 12986101) |
|
Immediately | $ 90.45 | ||||
| 25 | W11676465 | Grommet, Fan Motor (Replaces: 12951101) |
|
Immediately | $ 14.82 | ||||
| 26 | W11334745 | Motor, Evaporator (Replaces: W10252866) |
|
Immediately | $ 133.52 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.41 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 32 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.97 | ||||
| 33 | W10619951 | Extension, Drain Tube (Replaces: W10309238) |
|
Immediately | $ 42.39 |
