SELECT A DIAGRAM

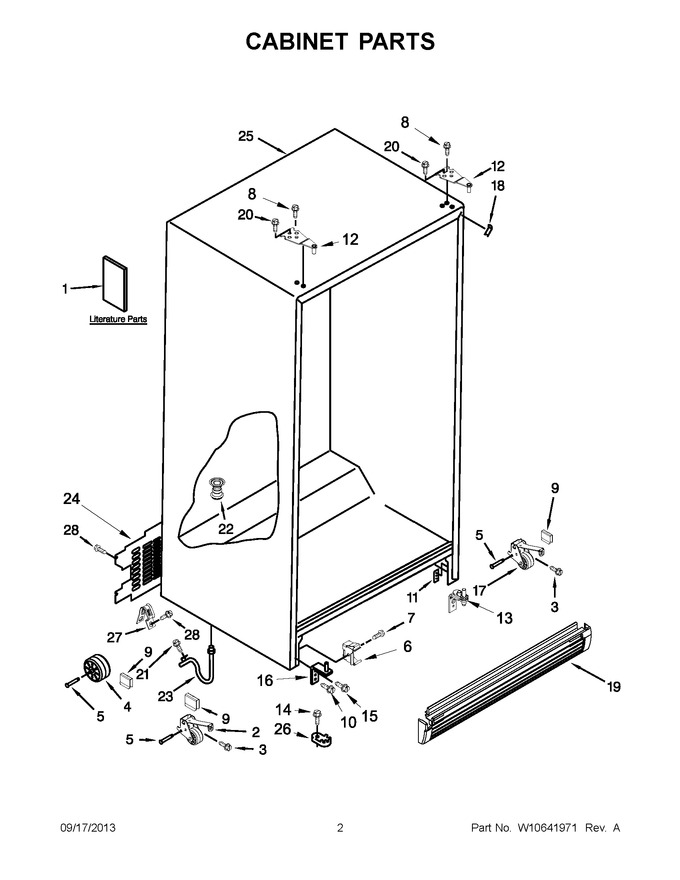

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10595224 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10583333 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Roller (Replaces: W10304660) |
|
Immediately | $ 70.38 | ||||
| 3 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 4 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 18.21 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 8 | W10336489 | Screw |
|
$ 14.33 | |||||
| 9 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.98 | |||||
| 10 | W10856122 | Screw (Replaces: 3400103) |
|
$ 7.76 | |||||
| 11 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.23 | |||||
| 12 | W11164088 | Door Hinge Assembly (grey) (Replaces: W10400479) |
|
$ 66.34 | |||||
| 13 | W11049959 | Hinge Bottom Rc (Replaces: W10409481) |
|
$ 76.06 | |||||
| 14 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 15 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 16 | W10646418 | Hinge Bottom Fc (Replaces: W10414753) |
|
Immediately | $ 38.73 | ||||
| 17 | WPW10304659 | Front Roller, Right (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 18 | W10851579 | Filler, Wrapper (grey) (Replaces: W10283961) |
|
Immediately | $ 7.19 | ||||
| 19 | W10449705 | Grille (grey) |
|
$ 94.31 | |||||
| 20 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.41 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 22 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 34.79 | |||||
| 24 | 2214572 | Cover, Unit |
|
- | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 26 | W11778262 | Door Closer, Freezer (Replaces: 2223751) |
|
$ 11.08 | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 13.39 | |||||
| 28 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 |
